Racord rapid drept, filet exterior NPT, tub in inch
Tip produs: 36A5
Presiune maxima de lucru: 30 bar
Temperatura: -20⁰C ... +150⁰C
Vacuum: 755 mmHg
Racord rapid drept push-in, alama nichelata, filet exterior NPT
- strangere pe exterior cu cheie fixa/tubulara, sau pe interior cu cheie imbus (hexagonala)
- constructie robusta, compacta
- suprafete exterioare cu forme usor de curatat
- partile componente respecta standardele FDA si reglemantarea 1935/2004/EC
- rezistenta foarte buna la coroziune
- datare si control de calitate pentru asigurarea calitatii si trasabilitatii
- Conformitate : ROHS
- Presiune maxima de lucru : 30 bar
- Temperatura minima de lucru : -20 ⁰C
- Temperatura maxima de lucru : 150 ⁰C
- Vacuum : 755 mmHg
- Corp : alama nichelata (procedeu chimic aprobat FDA)
- Garnituri : FKM (viton)
- Garnitura : alama nichelata (procedeu chimic aprobat FDA)

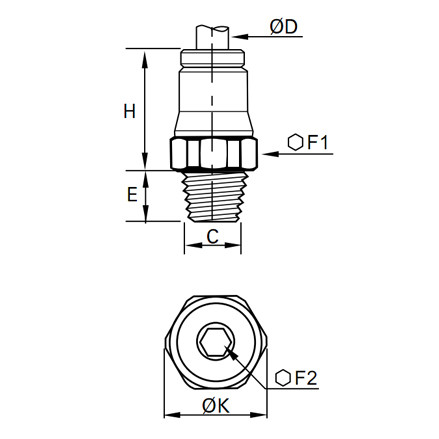

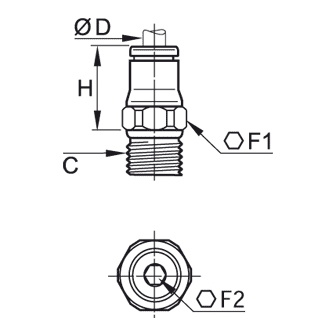

| Cod | ØD inch | C | F1 mm | F2 mm | H mm | K mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|
| 3675 56 11 | 1/4 | NPT1/8 | 13 | 5 | 17 | 14 |
|
Adauga |
| 3675 56 14 | 1/4 | NPT1/4 | 14 | 5 | 17 | 15 |
|
Adauga |
| 3675 56 18 | 1/4 | NPT3/8 | 18 | 5 | 17 | 19,5 |
|
Adauga |
| 3675 60 11 | 3/8 | NPT1/8 | 18 | 5 | 24,5 | 19,5 |
|
Adauga |
| 3675 60 14 | 3/8 | NPT1/4 | 18 | 7 | 24 | 19,5 |
|
Adauga |
| 3675 60 18 | 3/8 | NPT3/8 | 18 | 8 | 23 | 19,5 |
|
Adauga |
| 3675 60 22 | 3/8 | NPT1/2 | 22 | 8 | 24 | 24 |
|
Adauga |
| 3675 62 18 | 1/2 | NPT3/8 | 22 | 9 | 24 | 24 |
|
Adauga |
| 3675 62 22 | 1/2 | NPT1/2 | 22 | 10 | 23 | 24 |
|
Adauga |
