Racord niplu, alama nichelata, filete exterioare BSPT
Tip produs: 0900
Presiune maxima de lucru: 60 bar
Temperatura: -10⁰C ... +80⁰C
Niplu alama nichelata, FE-FE
Racord niplu cu filet conic.
- Conformitate : ROHS
- Presiune maxima de lucru : 60 bar
- Temperatura minima de lucru : -10 ⁰C
- Temperatura maxima de lucru : 80 ⁰C
- Corp : alama nichelata
- Catalog racorduri adaptoare alama nichelata : Deschide

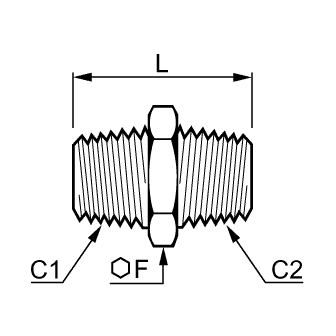

| Cod | C1 | C2 | F mm | L mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|
| 0900 00 10 | R1/8 | R1/8 | 12 | 20,5 |
|
Adauga |
| 0900 00 13 | R1/4 | R1/4 | 14 | 27 |
|
Adauga |
| 0900 00 17 | R3/8 | R3/8 | 17 | 28 |
|
Adauga |
| 0900 00 21 | R1/2 | R1/2 | 22 | 33,5 |
|
Adauga |
| 0900 00 27 | R3/4 | R3/4 | 27 | 39,5 |
|
Adauga |
| 0900 00 34 | R1 | R1 | 34 | 45,5 |
|
Adauga |
| 0900 10 13 | R1/8 | R1/4 | 14 | 24 |
|
Adauga |
| 0900 10 17 | R1/8 | R3/8 | 17 | 24,5 |
|
Adauga |
| 0900 13 17 | R1/4 | R3/8 | 17 | 27,5 |
|
Adauga |
| 0900 13 21 | R1/4 | R1/2 | 22 | 30,5 |
|
Adauga |
| 0900 17 21 | R3/8 | R1/2 | 22 | 31 |
|
Adauga |
| 0900 21 27 | R1/2 | R3/4 | 27 | 37 |
|
Adauga |
| 0900 27 34 | R3/4 | R1 | 34 | 42,5 |
|
Adauga |
