Racord niplu, alama, filete BSPT
Tip produs: 0121
Presiune maxima de lucru: 100 bar
Temperatura: -40⁰C ... +150⁰C
Niplu alama, FE-FE
- Conformitate : ROHS
- Presiune maxima de lucru : 100 bar
- Temperatura minima de lucru : -40 ⁰C
- Temperatura maxima de lucru : 150 ⁰C
- Corp : alama
- Catalog racorduri adaptoare alama : Deschide

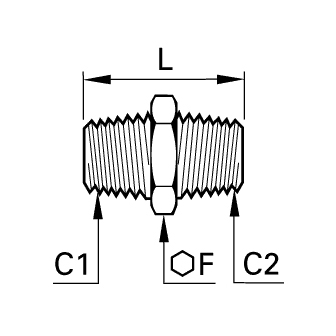

| Cod | C1 | C2 | F mm | L mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|
| 0121 10 10 | R1/8 | R1/8 | 11 | 19 |
|
Adauga |
| 0121 13 10 | R1/4 | R1/8 | 14 | 23,5 |
|
Adauga |
| 0121 13 13 | R1/4 | R1/4 | 14 | 27 |
|
Adauga |
| 0121 17 10 | R3/8 | R1/8 | 17 | 24 |
|
Adauga |
| 0121 17 13 | R3/8 | R1/4 | 17 | 27,5 |
|
Adauga |
| 0121 17 17 | R3/8 | R3/8 | 17 | 28 |
|
Adauga |
| 0121 21 10 | R1/2 | R1/8 | 22 | 28,5 |
|
Adauga |
| 0121 21 13 | R1/2 | R1/4 | 22 | 32 |
|
Adauga |
| 0121 21 17 | R1/2 | R3/8 | 22 | 32,5 |
|
Adauga |
| 0121 21 21 | R1/2 | R1/2 | 22 | 36 |
|
Adauga |
| 0121 27 13 | R3/4 | R1/4 | 27 | 35 |
|
Adauga |
| 0121 27 17 | R3/4 | R3/8 | 27 | 35,5 |
|
Adauga |
| 0121 27 21 | R3/4 | R1/2 | 27 | 39 |
|
Adauga |
| 0121 27 27 | R3/4 | R3/4 | 27 | 40 |
|
Adauga |
| 0121 34 17 | R1 | R3/8 | 36 | 38,5 |
|
Adauga |
| 0121 34 21 | R1 | R1/2 | 36 | 42 |
|
Adauga |
| 0121 34 27 | R1 | R3/4 | 36 | 43 |
|
Adauga |
| 0121 34 34 | R1 | R1 | 36 | 46 |
|
Adauga |
| 0121 42 21 | R1 1/4 | R1/2 | 46 | 46,5 |
|
Adauga |
| 0121 42 27 | R1 1/4 | R3/4 | 46 | 47,5 |
|
Adauga |
| 0121 42 34 | R1 1/4 | R1 | 46 | 50,5 |
|
Adauga |
| 0121 42 42 | R1 1/4 | R1 1/4 | 46 | 53 |
|
Adauga |
