Racord L, Prestomatic 3, filet exterior metric
Tip produs: PC99
Presiune maxima de lucru: 25 bar
Temperatura: -40⁰C ... +100⁰C
Racord cot pentru tuburi de plastic, filet exterior metric
- constructie solida, compacta,
- debit de aer maximal (full air flow)
- datare si control de calitate individual pentru asigurarea trasabilitatii
- DIN 74324-1, DIN 73378, NF-R12-632-2
- Conformitate : ROHS
- Presiune maxima de lucru : 25 bar
- Temperatura minima de lucru : -40 ⁰C
- Temperatura maxima de lucru : 100 ⁰C
- Corp : polimer tehnic
- Sub-base : alama
- Garnituri : NBR (cauciuc)
- Inel retinere : otel inox
- Catalog racorduri push-in prestomatic 3 : Deschide

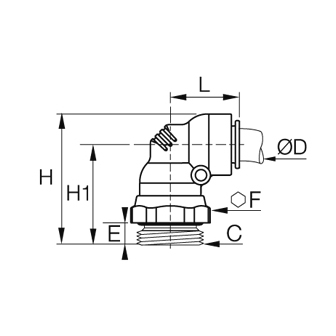

| Cod | ØD mm | C | E mm | F mm | H mm | H1 mm | L mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|---|
| C68UNPMK10M12 | 10 | M12x1,5 | 7,5 | 17 | 47 | 36 | 25 |
|
Adauga |
| C68UNPMK10M16 | 10 | M16x1,5 | 8 | 22 | 47 | 37 | 25 |
|
Adauga |
| C68UNPMK10M22 | 10 | M22x1,5 | 8 | 27 | 48 | 38 | 25 |
|
Adauga |
| C68UNPMK12M12 | 12 | M12x1,5 | 7,5 | 17 | 49 | 37,5 | 26 |
|
Adauga |
| C68UNPMK12M16 | 12 | M16x1,5 | 8 | 22 | 50 | 38,5 | 26 |
|
Adauga |
| C68UNPMK16M22 | 16 | M22x1,5 | 8 | 27 | 53 | 39,5 | 27 |
|
Adauga |
| C68UNPMK8M12 | 8 | M12x1,5 | 7,5 | 17 | 40 | 31 | 20,5 |
|
Adauga |
| C68UNPMK8M14 | 8 | M14x1,5 | 7,5 | 19 | 40 | 31 | 20,5 |
|
Adauga |
| C68UNPMK8M16 | 8 | M16x1,5 | 8 | 22 | 41 | 32 | 20,5 |
|
Adauga |
| C68UNPMK8M22 | 8 | M22x1,5 | 8 | 27 | 41 | 32 | 20,5 |
|
Adauga |
