Racord L, alama nichelata, filet exterior BSPT
Tip produs: C3BP
Presiune maxima de lucru: 18 bar
Temperatura: -40⁰C ... +100⁰C
Fiting cot cu strangere pe con, cu piulita randalinata
- Conformitate : ROHS
- Presiune maxima de lucru : 18 bar
- Temperatura minima de lucru : -40 ⁰C
- Temperatura maxima de lucru : 100 ⁰C
- Corp : alama nichelata
- Piulita : alama nichelata
- Catalog pdf : Deschide

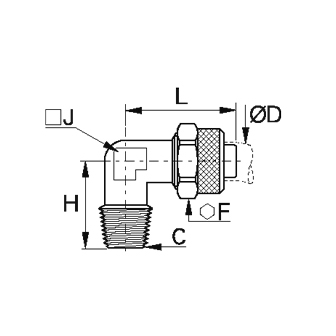

| Cod | ØD mm | C | F mm | H mm | J mm | L mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|
| C3BPL10/12-3/8 | 10x12 | R3/8 | 18 | 24,5 | 14 | 30 |
|
Adauga |
| C3BPL2.7/4-1/8 | 2,7x4 | R1/8 | 8 | 17 | 8 | 19,5 |
|
Adauga |
| C3BPL4/6-1/4 | 4x6 | R1/4 | 12 | 20 | 10 | 22,5 |
|
Adauga |
| C3BPL4/6-1/8 | 4x6 | R1/8 | 12 | 17 | 8 | 22,5 |
|
Adauga |
| C3BPL6/8-1/4 | 6x8 | R1/4 | 14 | 20 | 10 | 22,5 |
|
Adauga |
| C3BPL6/8-1/8 | 6x8 | R1/8 | 14 | 17 | 10 | 22,5 |
|
Adauga |
| C3BPL6/8-3/8 | 6x8 | R3/8 | 14 | 22,5 | 11 | 24 |
|
Adauga |
| C3BPL8/10-1/4 | 8x10 | R1/4 | 16 | 21,5 | 11 | 25,5 |
|
Adauga |
| C3BPL8/10-3/8 | 8x10 | R3/8 | 16 | 22,5 | 11 | 25,5 |
|
Adauga |
