Racord drept plug-in, filet BSPT
Tip produs: 3121
Presiune maxima de lucru: 20 bar
Temperatura: -20⁰C ... +80⁰C
Vacuum: 755 mmHg
Racord rapid drept plug-in, filet exterior conic preteflonat
- strangere pe exterior cu cheie fixa
- constructie robusta, compacta
- debit de aer maximal (full air flow)
- Conformitate : ROHS
- Presiune maxima de lucru : 20 bar
- Temperatura minima de lucru : -20 ⁰C
- Temperatura maxima de lucru : 80 ⁰C
- Vacuum : 755 mmHg
- Corp : polimer tehnic
- Sub-base : alama nichelata
- Tratament : PTFE (teflon)
- Catalog racorduri rapide seria LF3000/LF3200 : Deschide

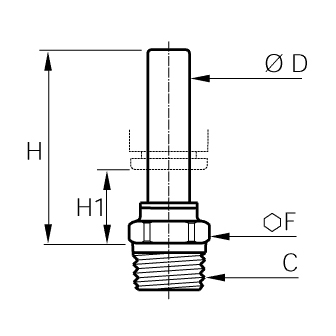

| Cod | ØD mm | C | F mm | H mm | H1 mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|
| 3121 04 10 | 4 | R1/8 | 10 | 26 | 14 |
|
Adauga |
| 3121 04 13 | 4 | R1/4 | 14 | 26,5 | 14,5 |
|
Adauga |
| 3121 06 10 | 6 | R1/8 | 10 | 28 | 14 |
|
Adauga |
| 3121 06 13 | 6 | R1/4 | 14 | 28,5 | 14,5 |
|
Adauga |
| 3121 08 10 | 8 | R1/8 | 10 | 29,5 | 11 |
|
Adauga |
| 3121 08 13 | 8 | R1/4 | 14 | 28,5 | 10 |
|
Adauga |
| 3121 10 13 | 10 | R1/4 | 15 | 36 | 15,5 |
|
Adauga |
| 3121 10 17 | 10 | R3/8 | 17 | 36 | 15,5 |
|
Adauga |
| 3121 10 21 | 10 | R1/2 | 21 | 36 | 15,5 |
|
Adauga |
| 3121 12 17 | 12 | R3/8 | 17 | 36,5 | 12 |
|
Adauga |
| 3121 12 21 | 12 | R1/2 | 21 | 36,5 | 12 |
|
Adauga |
