Racord drept, alama nichelata, filet exterior BSPT
Tip produs: F3BP
Presiune maxima de lucru: 18 bar
Temperatura: -40⁰C ... +100⁰C
Fiting cu strangere pe con, piulita randalinata
- Conformitate : ROHS
- Presiune maxima de lucru : 18 bar
- Temperatura minima de lucru : -40 ⁰C
- Temperatura maxima de lucru : 100 ⁰C
- Corp : alama nichelata
- Piulita : alama nichelata
- Catalog pdf : Deschide

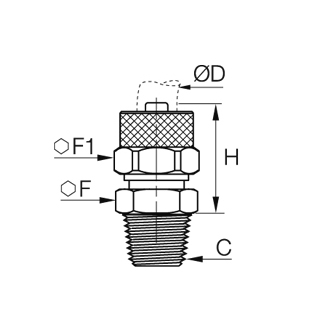

| Cod | ØD mm | C | F mm | F1 mm | H mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|
| F3BPL10/12-3/8 | 10x12 | R3/8 | 17 | 18 | 23 |
|
Adauga |
| F3BPL2.7/4-1/8 | 2,7x4 | R1/8 | 12 | 8 | 16 |
|
Adauga |
| F3BPL4/6-1/4 | 4x6 | R1/4 | 14 | 12 | 20 |
|
Adauga |
| F3BPL4/6-1/8 | 4x6 | R1/8 | 12 | 12 | 19,5 |
|
Adauga |
| F3BPL6/8-1/4 | 6x8 | R1/4 | 14 | 14 | 20 |
|
Adauga |
| F3BPL6/8-1/8 | 6x8 | R1/8 | 12 | 14 | 19,5 |
|
Adauga |
| F3BPL6/8-3/8 | 6x8 | R3/8 | 17 | 14 | 20 |
|
Adauga |
| F3BPL8/10-1/4 | 8x10 | R1/4 | 14 | 16 | 21,5 |
|
Adauga |
| F3BPL8/10-3/8 | 8x10 | R3/8 | 17 | 16 | 21,5 |
|
Adauga |
