Racord adaptor, plug-in, stut furtun
Tip produs: 3122
Presiune maxima de lucru: 20 bar
Temperatura: -20⁰C ... +80⁰C
Vacuum: 755 mmHg
Racord adaptor plug-in, cu stut pentru furtun flexibil
- Conformitate : ROHS
- Presiune maxima de lucru : 20 bar
- Temperatura minima de lucru : -20 ⁰C
- Temperatura maxima de lucru : 80 ⁰C
- Vacuum : 755 mmHg
- Corp : polimer tehnic
- Catalog racorduri rapide seria LF3000/LF3200 : Deschide

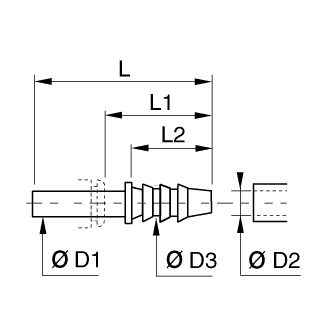

| Cod | ØD1 mm | ØD2 mm | ØD3 mm | L2 mm | L mm | L1 mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|
| 3122 04 05 | 4 | 5 | 7 | 17 | 37 | 25 |
|
Adauga |
| 3122 04 53 | 4 | 3,2 | 5 | 17 | 37 | 25 |
|
Adauga |
| 3122 06 05 | 6 | 5 | 7 | 17 | 39 | 25 |
|
Adauga |
| 3122 08 08 | 8 | 8 | 10 | 22 | 44,5 | 26 |
|
Adauga |
| 3122 08 56 | 8 | 6,3 | 8,5 | 17 | 39,5 | 21 |
|
Adauga |
| 3122 10 08 | 10 | 8 | 10 | 22 | 50 | 29,5 |
|
Adauga |
| 3122 10 56 | 10 | 6,3 | 8 | 17 | 45 | 24,5 |
|
Adauga |
| 3122 12 08 | 12 | 8 | 10 | 22 | 50 | 26 |
|
Adauga |
| 3122 12 10 | 12 | 10 | 12 | 22,5 | 48,5 | 25,5 |
|
Adauga |
| 3122 12 62 | 12 | 12,5 | 14,5 | 22,5 | 57 | 34 |
|
Adauga |
| 3122 14 62 | 14 | 12,5 | 14,5 | 22,5 | 59,5 | 34,5 |
|
Adauga |
| 3122 60 08 | 3/8 inch | 5/16 inch | 50/127 inch | 22,098 | 50,038 | 29,464 |
|
Adauga |
