Racord adaptor crescator, inox, filet exterior BSPT
Tip produs: 1861
Reductie inox, FI-FE
Presiune maxima de lucru: 150 bar
Temperatura: -20⁰C ... +180⁰C
Reductie inox, FI-FE, filet exterior conic.
Racord adaptor pentru reducerea filetului exterior sau cresterea filetului interior.
Rezistenta foarte buna la agenti chimici si medii agresive.
- Conformitate : ROHS
- Presiune maxima de lucru : 150 bar
- Temperatura minima de lucru : -20 ⁰C
- Temperatura maxima de lucru : 180 ⁰C
- Corp : otel inox 316L
- Catalog racorduri adaptoare inox : Deschide

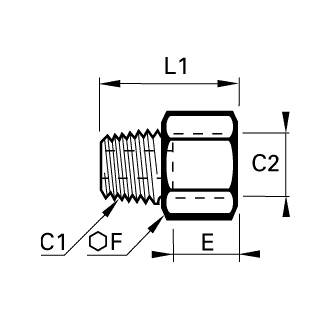

| Cod | C1 | C2 | E mm | F mm | L mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|
| 1861 10 13 | R1/8 | G1/4 | 11 | 17 | 24 |
|
Adauga |
| 1861 10 17 | R1/8 | G3/8 | 11,5 | 22 | 25 |
|
Adauga |
| 1861 13 17 | R1/4 | G3/8 | 11,5 | 22 | 28,5 |
|
Adauga |
| 1861 13 21 | R1/4 | G1/2 | 15 | 27 | 32,5 |
|
Adauga |
| 1861 17 21 | R3/8 | G1/2 | 15 | 27 | 33 |
|
Adauga |
| 1861 21 27 | R1/2 | G3/4 | 16,5 | 32 | 38 |
|
Adauga |
| 1861 27 34 | R3/4 | G1 | 19 | 41 | 43,5 |
|
Adauga |
