Dop hexagon interior, otel, filet exterior NPT
Tip produs: 02A6
Presiune maxima de lucru: 100 bar
Temperatura: -40⁰C ... +150⁰C
Dop otel cu filet conic NPT.
Asamblare cu cheie hexagonala.
- Conformitate : ROHS
- Presiune maxima de lucru : 100 bar
- Temperatura minima de lucru : -40 ⁰C
- Temperatura maxima de lucru : 150 ⁰C
- Corp : otel
- Catalog dopuri cu filet : Deschide

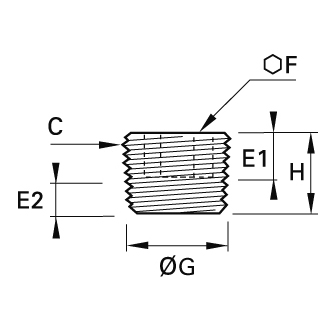

| Cod | C | E1 mm | E2 min mm | E2 max mm | F mm | ØG mm | H mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|---|
| 0206 08 00 | NPT1/16 | 6 | 3,8 | 6,4 | 4 | 7,80 | 7 |
|
Adauga |
| 0206 11 00 | NPT1/8 | 6 | 3,2 | 5 | 5 | 10,24 | 8 |
|
Adauga |
| 0206 14 00 | NPT1/4 | 8 | 4,4 | 7,2 | 6 | 13,62 | 10 |
|
Adauga |
| 0206 18 00 | NPT3/8 | 8 | 4,7 | 7,5 | 8 | 17,05 | 11 |
|
Adauga |
| 0206 22 00 | NPT1/2 | 8 | 6,3 | 9,9 | 10 | 21,22 | 13 |
|
Adauga |
| 0206 28 00 | NPT3/4 | 11 | 6,8 | 10,4 | 14 | 26,57 | 17 |
|
Adauga |
| 0206 35 00 | NPT1 | 13 | 8 | 12,4 | 17 | 33,23 | 19 |
|
Adauga |
