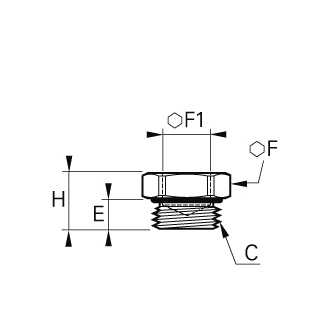

Dop cap hexagonal interior si exterior, alama nichelata, filet exterior BSPP
Presiune maxima de lucru: 20 bar
Temperatura: -20⁰C ... +80⁰C
Dop alama nichelata cu filet paralel si etansare pe garnitura O-ring.
Asamblare cu cheie fixa sau cheie hexagonala.
- Conformitate : ROHS
- Presiune maxima de lucru : 20 bar
- Temperatura minima de lucru : -20 ⁰C
- Temperatura maxima de lucru : 80 ⁰C
- Corp : alama nichelata
- Garnituri : NBR (cauciuc)
Informatii de la producator
Accessories for Push-In Fittings - LF 3000®
Parker Legris has designed different accessories to protect operators and equipment, and prevent accidental disconnection of tubing. Colour-coding also allows for fluid circuit identification.
Parker Legris has designed different accessories to improve safety and circuit identification. Those accessories are compatible with the LF 3000® Push-In Fittings , LIQUIfit® ranges.
Features/Benefits:
- Safety
• Protection of operators and equipment
• Prevents accidental disconnection
• Disconnection only possible with tooling
• Resistance to grease and cleaning agents- Ergonomic
• Colour-coding for fluid circuit identification (6 colours)
• Setting and fixing of your circuits thanks to clips and release button covers
• Easy disconnection with tool where access is difficult
• Adapted to meet all installation configurations
Markets:
• Factory Automation
• Vehicule Assembly Facilities
• Food and Beverage
• Semiconductor
• Wearing Apparel
• Packaging Machinery
Applications:
• Pneumatic Machinery Equipment
• Low Pressure Compressed Air Conveying
• Suitable for Vaccum Applications
Technologies:
• Safety Accessories
• Safety Tools
• Circuit Identification
• Push-In Fittings
• Push-to-Connect Fittings
• Pneumatic Fittings
• Instant Fittings
• Quick Fittings
• Connectors
Technical Characteristics:
• Compatible ranges: LF 3000®, LIQUIfit®• Materials: Technical polymer, nickel-plated brass
• Pressure: Vacuum to 20 bar• Temperature: -20°C to +95°C
• Ø Metric: 4mm to 14 mm
Product Types:
• Tamper-Proof Safety clips
• Clip Strip for Tubes and Fittings
• Disconnection Tool
• Coloured Release Button Covers
• Reducer
• Internal Hex plug
| Body Material | NICKEL PLATED BRASS |
| Brand | Parker |
| Brand | Legris |
| O-Ring Material | NBR |
| Division | Low Pressure Connectors Europe Division |
| Maximum Operating Pressure | 20 barg |
| Industry | Industrial Manufacturing Equipment |
| Minimum Operating Temperature | -20 °C |
| Industry | Chemicals Processing |
| Industry | Industrial Processing |
| Maximum Operating Temperature | 80 °C |
| Industry | Electronics |
| Industry | Semiconductor |
| Vacuum Pressure Rating | na |
| Industry | Power Generation |
| Industry | Renewable Energy |
| Quantity per Box | 10 |
| Industry | Transportation |
| Weight | 0,006 kg |
| Application | Robotics, Automotive Process, Pneumatics, Semi-Conductors, Textile, Water Treatment, Beverage Dispensers |
| Industry | Off-road Machinery |
| Application | Robotics |
| Media | LF3000, LIQUIfit |
| Application | Automotive |
| Application | Pneumatics |
| Application | Textile |
| Application | Packaging |
| Application | Food & Beverage |
| Application | Semiconductor |
| Application | Vacuum |
| Technology | Fluid & Gas Handling |
| Product Type | Adaptors, Plugs and Manifolds |
| Product Style | Plugs |
| Product Series | LF 3000® |
| Product Series | LF 3600 |
| Product Series | LF 3800 |
| Vacuum Pressure Rating | 755 mm-Hg |
| Shape | Straight |
| Configuration | n/a |
| Connection 1 Type | BSPP |
| Connection 1 Type | Male |
| Connection 1 Size | G 1/8 inch Thread |
| Connection 2 Type | n/a |
| Connection 2 Size | n/a |
| Hex Size | 13 |
| Hex Type | n/a |
| Maximum Operating Temperature | up to 80 °C |
| Minimum Operating Temperature | -10 °C |
| For Fluid Type | Air (Compressed Air) |
| Body Material | Brass, Nickel-plated |
| Seal Material | NBR |
| Weight | 0.006 kg |
| Quantity per Box | 10 |
| Operating Pressure | 20 to 60 bar |
