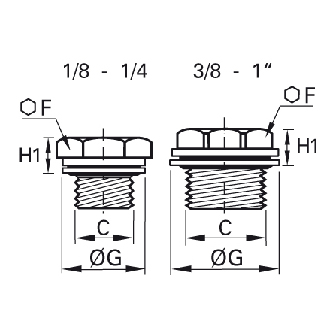

Dop cap hexagonal, alama, filet exterior BSPP, garnitura bi-material
Presiune maxima de lucru: 20 bar
Temperatura: -20⁰C ... +80⁰C
Dop alama cu filet paralel BSPP sau metric si etansare pe garnitura bi-material.
Asamblare cu cheie fixa.
Rezistenta foarte buna la compresiune.
- Conformitate : ROHS
- Presiune maxima de lucru : 20 bar
- Temperatura minima de lucru : -20 ⁰C
- Temperatura maxima de lucru : 80 ⁰C
- Corp : alama
- Garnitura : otel zincat si cauciuc NBR
Informatii de la producator
Brass Accessories for Compression Fittings
Brass fittings for optimum installation adaptation <br/>Available in 1/8" to 3/4" ID<br/>This range of fittings is designed to meet the requirements of the automotive and robotics industries
This range of fittings accessories is designed to meet the requirements of the automotive and robotics industries, provides optimum adaptation in installation adaptation and reliable operation.
Features/Benefits:
• Perfect for brass compression fittings adaptation to the installation
• Quick and simple to install
• Compatible with the Parker Legris range of brass compression fittings
• Mechanical properties proven for use in industrial robotic installations
Markets:
• Packaging
• Miscellaneous Manufacturing
• Vehicle Assembly Facilities
• Machine Tools
Applications:
• Pneumatic Machinery Equipment at Medium and High Pressure
• Lubrication Systems
• Cooling Systems
• Welding Robots
• Suitable for Vacuum Applications
Technologies:
Brass fittings for optimum installation adaptation
Technical Characteristics:
• Fluids: Coolants, compressed air
• Materials: brass, engineering polymer, silicone free
• Pressure: 0 to 20 bar (250 bar for the the 0220 product type)
• Temperature: -60°C to +250°C ( With metallic tube and without polymer seals)
Regulations:
• DI: 2002/95/EC (RoHS), 2011/65/EC
• DI: 97/23/EC (PED)
• RG: 1907/2006 (REACH)
Product Types:
• Barb Connector for Hose
• Barb Connector for Flexible Tubing
• Plug for Compression Fitting
• Tube End Plug for Compression Fitting
• Hex Head Plug with Captive Sealing Washer, Male BSPP and Metric Thread
• Hex Head Plug with Bi-Material Seal, Male BSPP Thread
• Stud Standpipe, Male BSPT Thread
• Sleeve Nut for Compression Fitting, Male Metric Thread
• Stud Standpipe with Bi-Material Seal, Male BSPP Thread
• Straight Male Orientable Adaptor, with Bi-Material Seal, Male BSPP Thread
• Reducer, with Bi-Material Seal, Male BSPP Thread/Female BSPP and Metric Thread
• Tube Support / ferrule for Polymer Tubing
| Body Material | BRASS |
| Maximum Operating Pressure | 20 bar |
| Minimum Operating Temperature | -20 °C |
| Maximum Operating Temperature | + 80 °C |
| Quantity per Box | 10 |
| Weight | 0,012 kg |
| Industry Application | Pneumatics, Cooling, Automotive Process, Lubrication, Fluid Transmission, Packaging, Industrial Machinery |
| Media | Coolants, compressed air |
| Specifications Met | RoHS, PED, REACH, CNOMO for robot in automotive industry |
| Shape | Hex head plug with bi-material sealing male |
| Fluid System Connectors Assembly Guides for Fittings and Valves | view |
| Inventor of push-in fittings and market leader in quick couplings, Parker Legris Rectus has a reputed experience in fluid transfer for production automation, transportation, food processing, thermal management and medical applications. | view |
- Catalog dopuri 0220 : Deschide
