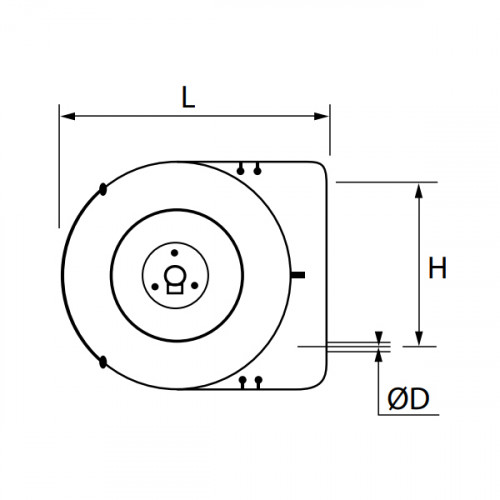

Derulator furtun poliuretan 10 m, 16 m
Utilizat pentru conectarea dispozitivelor in miscare
Presiune maxima de lucru: 15 bar
Temperatura: -15⁰C ... +70⁰C
Rola de furtun poliuretan, cu carcasa, ce asigura optimizarea productivitatii si a sigurantei spatiului de lucru.
Previne deteriorarea furtunului ce se poate produce pe podeaua atelierului.
- conexiune de iesire: 1/4” exterior
Informatii de la producator
Transair® Hose Reel
10' Hose Reel
Parker Transair® Hose Reels for flexible compressed air hoses are lightweight and easily install into an existing Transair system. A hose clutch with free return makes these hoses retract with little resistance. Installing an air hose reel will prevent air hose damage that normally occurs from leaving them around the shop.
Transair pneumatic hose reels have a 1/4" male outlet connection and a 3/8" inlet connection.
Markets:
• Automotive Assembly
• Food & Beverage
• Packaging
• Industrial Plants
• Aerospace
Features/Benefits:
• Quick Connection Technology
• Optimum Flow Rate
• 10-Year Warranty
• Lightweight
Applications:
• Compressed Air
| Application | In Plant Pneumatic |
| Assembly Time | 0.15 Hours |
| Brand | Parker |
| Brand | Parker Transair |
| Brand | Transair |
| Division | Low Pressure Connectors Europe Division |
| For Fluid Type | Air |
| Hose Inside Diameter | 6 mm |
| Industry | General Industrial |
| Length | 10 m |
| Length | 3 FEET|10 M |
| Length | 3 ft |
| Product Type | Compressed Air Piping |
| Quantity per Box | 1.0 |
| Technology | Fluid & Gas Handling |
| Technology | Fluid & Gas Handling|Pneumatics |
| Technology | Pneumatics |
| Weight | 3.4 kg |
| Weight | 7.5 lb |
| Maximum Operating Pressure | 250 psi |
| Maximum Operating Pressure | 17.2 bar |
| Minimum Operating Temperature | -4 °F |
| Minimum Operating Temperature | -20 °C |
| Maximum Operating Temperature | 140 °F |
| Maximum Operating Temperature | 60 °C |
