Cupla rapida tata, seria 70 termoplstic, filet interior
Tip produs: 70SBIW-termoplastic

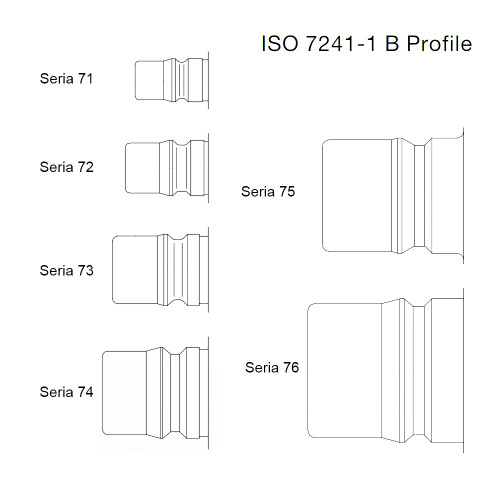

Profil ISO 7241-1 seria B
Seria 70 termoplastic, Diametru nominal DN 4,3 ... DN 20
double shut-off
Presiune maxima de lucru: 10...15 bar
Temperatura: -20⁰C ... +90⁰C
Cupla rapida tata, seria 70 termoplastic, POM, cu filet interior si supapa pentru inchidere dubla.
Debit de apa:
• Seria 72: 9 l/min.
• Seria 73: 17 l/min.
• Seria 74: 33 l/min.
• Seria 75: 79 l/min.
• Seria 76: 117 l/min.
cadere de presiune 0,5 bar

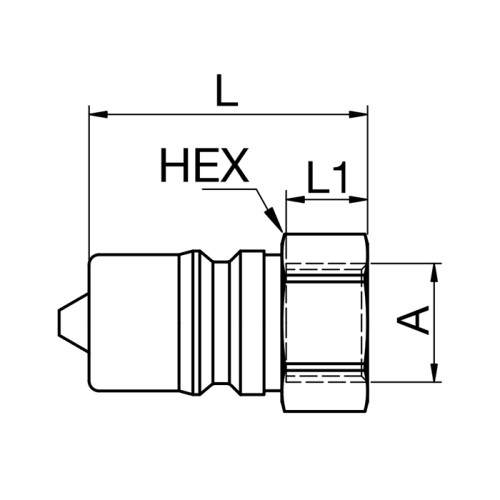

| Cod | A | DN mm | HEX mm | L mm | L1 mm | ØD mm | Varianta | Pmax bar | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|---|---|
| 71SBIW10DPX | G1/8 | 4,3 | 14 | 29,5 | 7 | 25 | POM | 15 |
|
Adauga |
| 72SBIW13DPX | G1/4 | 6 | 19 | 35 | 10 | 25 | POM | 15 |
|
Adauga |
| 73SBIW17DPX | G3/8 | 7,5 | 22 | 39 | 11,5 | 35 | POM | 15 |
|
Adauga |
| 74SBIW21DPX | G1/2 | 11 | 27 | 48 | 16 | 44,5 | POM | 10 |
|
Adauga |
| 75SBIW26DPX | G3/4 | 13 | 36 | 60 | 24 | 55 | POM | 10 |
|
Adauga |
| 76SBIW33DPX | G1 | 20 | 41 | 65 | 24 | 62 | POM | 10 |
|
Adauga |
