Cupla rapida tata, seria 70, filet interior
Tip produs: 70SBIW

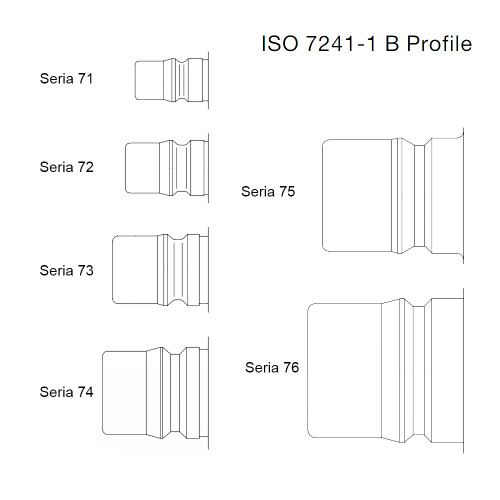

Profil ISO 7241-1 seria B
Seria 70, Diametru nominal DN 4,3 ... DN 20
double shut-off
Presiune maxima de lucru: 100...250 bar
Temperatura: -20⁰C ... +100⁰C
Cupla rapida tata, seria 70, alama sau alama nichelata, cu filet interior si supapa pentru inchidere dubla.
Debit de apa:
• Seria 71: 6 l/min.
• Seria 72: 9 l/min.
• Seria 73: 17 l/min.
• Seria 74: 33 l/min.
• Seria 75: 79 l/min.
• Seria 76: 117 l/min.
cadere de presiune 0,5 bar

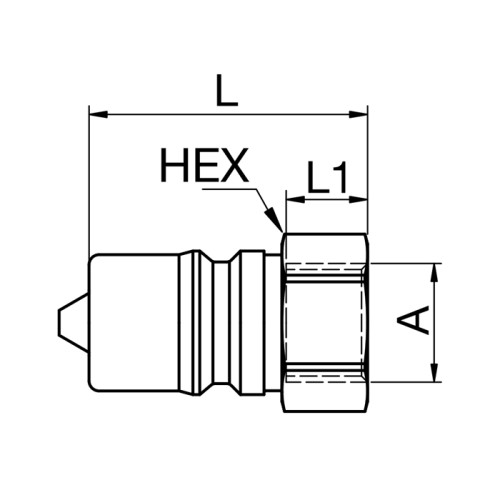

| Cod | A | DN mm | HEX mm | L mm | L1 mm | ØD mm | Varianta | Pmax bar | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|---|---|
| 71SBIW10MPX | G1/8 | 4,3 | 14 | 29,5 | 7 | 25 | alama | 250 |
|
Adauga |
| 71SBIW10MPN | G1/8 | 4,3 | 14 | 29,5 | 7 | 25 | alama nichelata | 250 |
|
Adauga |
| 72SBIW13MPX | G1/4 | 6 | 19 | 35 | 10 | 25 | alama | 200 |
|
Adauga |
| 72SBIW13MPN | G1/4 | 6 | 19 | 35 | 10 | 25 | alama nichelata | 200 |
|
Adauga |
| 73SBIW17MPX | G3/8 | 7,5 | 22 | 39 | 11,5 | 35 | alama | 200 |
|
Adauga |
| 73SBIW17MPN | G3/8 | 7,5 | 22 | 39 | 11,5 | 35 | alama nichelata | 200 |
|
Adauga |
| 74SBIW21MPX | G1/2 | 11 | 27 | 48 | 16 | 44,5 | alama | 150 |
|
Adauga |
| 74SBIW21MPN | G1/2 | 11 | 27 | 48 | 16 | 44,5 | alama nichelata | 150 |
|
Adauga |
| 75SBIW26MPX | G3/4 | 13 | 36 | 60 | 24 | 55 | alama | 100 |
|
Adauga |
| 75SBIW26MPN | G3/4 | 13 | 36 | 60 | 24 | 55 | alama nichelata | 100 |
|
Adauga |
| 76SBIW33MPX | G1 | 20 | 41 | 65 | 24 | 62 | alama | 100 |
|
Adauga |
| 76SBIW33MPN | G1 | 20 | 41 | 65 | 24 | 62 | alama nichelata | 100 |
|
Adauga |
