Cupla rapida tata, seria 39, filet exterior
Tip produs: 39SBAW
Profil American
Seria 38, Diametru nominal DN 19
double shut-off
Presiune maxima de lucru: 35 bar
Temperatura: -20⁰C ... +100⁰C
Cupla rapida tata, seria 39, alama nichelata, cu filet exterior si supapa pentru inchidere dubla.
Informatii de la producator
Quick Coupling with Parker own Profile, Series 39
Quick coupling system with nominal diameter 19 for pneumatic and fluid handling applications up to 35 bar. Coupling system with Parker own profile. Available made of brass.
Parker's Series 39 is a compact industrial coupling system made of brass for use with numerous gaseous and liquid media. The UltraFlo valve guarantees optimum flow and low pressure drop.
Markets:
- Machinery Construction
- Mobile Hydraulics
- Industrial
- Material Handling
Features/Benefits:
- UltraFlo valve for optimum flow and low pressure drop
- Single-hand operation for easy and fast connection
Applications:
- Pneumatic Power Tools
- Assembly Lines
- Air compressors
- Fluid Transfer
- Laboratory Gas Supply
- Cooling of Electronic Components
- Food and chemical processing
- Water and coolant lines
Markets:
- Machinery Construction
- Mobile Hydraulics
- Industrial
- Material Handling
Features/Benefits:
- UltraFlo valve for optimum flow and low pressure drop
- Single-hand operation for easy and fast connection
Applications:
- Pneumatic Power Tools
- Assembly Lines
- Air compressors
- Fluid Transfer
- Laboratory Gas Supply
- Cooling of Electronic Components
- Food and chemical processing
- Water and coolant lines

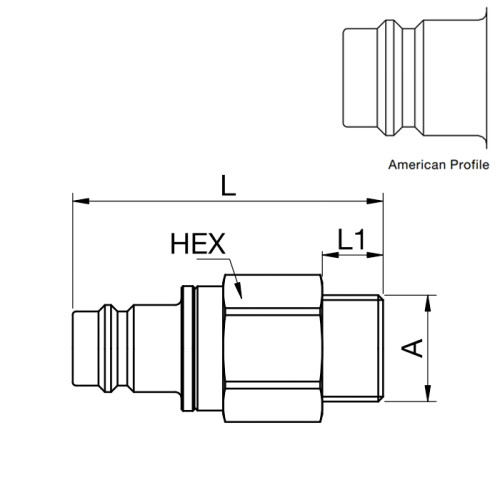

| Diameter | 19 nom |
| Valve Included | Yes |
| Length | 92 mm |
| Hex Size | 41 mm |
| Outside Diameter | n/a |
| Seal Material | NBR |
| Minimum Operating Temperature | -20 °C |
| Maximum Operating Temperature | 100 °C |
| Maximum Operating Pressure | 35 bar |
| Flow Rate | 3000 L/min |
| Datasheet Series 39 Double-Shut-Off Version made of Brass/Steel | view |
| Customer information about test reports and inspection certificates | view |
| Instructions for use - Standard-Couplings Single Shut-Off, Double Shut-Off, Straight-Through and Dry-break Couplings | view |
| Safety instructions - Quick Connect Couplings | view |
| GWI Certificate | view |
| Datasheet Series 39 Single-Shut-Off Version made of Brass/Steel | view |
| Safety instructions Quick Couplings | view |
| Dust Caps - Correlation to the series | view |
| Catalogue Page Parker Rectus Series 39 | view |
| Inventor of push-in fittings and market leader in quick couplings, Parker Legris Rectus has a reputed experience in fluid transfer for production automation, transportation, food processing, thermal management and medical applications. | view |
| Declaration Regarding Regulation (EC) No. 1907/2006 of the European Parliament and the Council Dated 18 December 2006 Concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) Published on 30 December 2006 in the Official Journal of the European Union 396/1. | view |
| Instructions for use for explosive areas (ATEX) | view |
| Quick Coupling Systems for Medium- and High-PressurenParker Hannifin - High Pressure Connectors Europe | view |
| Overview of couplings for vacuum applications | view |
| Statement to EC Machinery Directive 2006/42/EC | view |
| Leakage rates for low-pressure couplings | view |
| Declaration of conformity - DIRECTIVE 2011/65/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 8 June 2011on the restriction of the use of certain hazardous substances in electrical and electronic equipment | view |
| Recommended values for the assembly of quick couplings to their connected lines | view |
| 39SBAW26MPN | Part Solutions |
