Cupla rapida tata, seria 25, cu stut
Tip produs: 25SBT
Profil standard industrial European
Seria 25, Diametru nominal DN 7,8
double shut-off
Presiune maxima de lucru: 35 bar
Temperatura: -20⁰C ... +100⁰C
Cupla rapida tata, seria 25, alama nichelata, cu stut pentru furtun si supapa de inchidere.

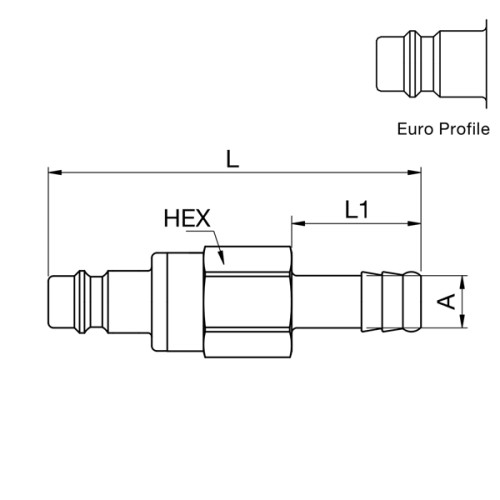

| Cod | Cod Legris | A | HEX mm | L mm | L1 mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|
| 25SBTF06MPN | 9285 25 06 | 6 | 21 | 60 | 25 |
|
Adauga |
| 25SBTF08MPN | 9285 25 08 | 8 | 21 | 60 | 25 |
|
Adauga |
| 25SBTF09MPN | 9285 25 09 | 9 | 21 | 60 | 25 |
|
Adauga |
| 25SBTF10MPN | 9285 25 10 | 10 | 21 | 60 | 25 |
|
Adauga |
| 25SBTF13MPN | 9285 25 13 | 13 | 21 | 60 | 25 |
|
Adauga |
| 25SBTP10MPN | 10 Push-lok | 19 | 71 | 24 |
|
Adauga | |
| 25SBTP13MPN | 13 Push-lok | 19 | 83 | 28 |
|
Adauga |
