Cupla rapida tata, seria 21, filet interior
Tip produs: 21SBI
Profil standard European
Seria 21, Diametru nominal DN 5
double shut-off
Presiune maxima de lucru: 35 bar
Temperatura: -20⁰C ... +100⁰C

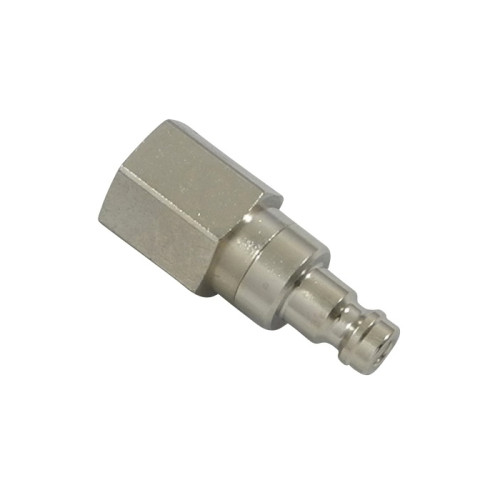

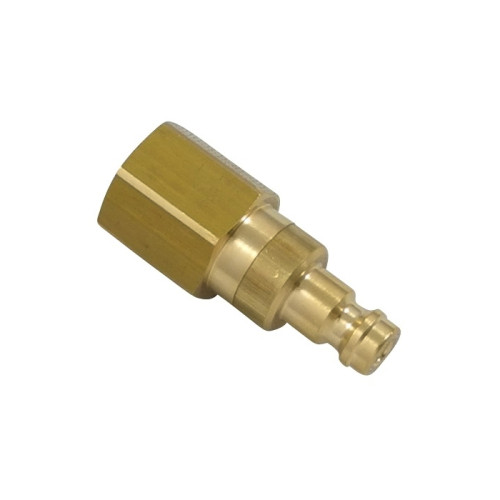

Cupla rapida tata, seria 21, alama sau alama nichelata, cu filet interior si supapa pentru inchidere dubla

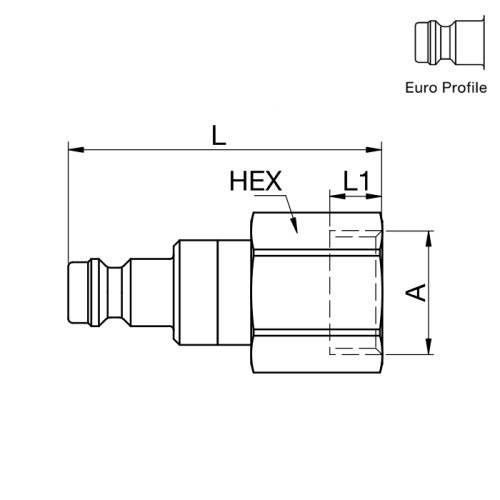

| Cod | Cod Legris | A | HEX mm | L mm | L1 mm | Varianta | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|
| 21SBIW10MPX | G1/8 | 14 | 40 | 7 | alama |
|
Adauga | |
| 21SBIW10MPN | 9286 21 10 | G1/8 | 14 | 40 | 7 | alama nichelata |
|
Adauga |
| 21SBIW13MPX | G1/4 | 17 | 42 | 7 | alama |
|
Adauga | |
| 21SBIW13MPN | 9286 21 13 | G1/4 | 17 | 42 | 7 | alama nichelata |
|
Adauga |
| 21SBIW17MPX | G3/8 | 19 | 42 | 7 | alama |
|
Adauga | |
| 21SBIW17MPN | G3/8 | 19 | 42 | 7 | alama nichelata |
|
Adauga | |
| 21SBIM12MPX | M12x1.5 | 17 | 42 | 7 | alama |
|
Adauga | |
| 21SBIM12MPN | M12x1.5 | 17 | 42 | 7 | alama nichelata |
|
Adauga | |
| 21SBIM14MPX | M14x1.5 | 17 | 42 | 7 | alama |
|
Adauga | |
| 21SBIM14MPN | M14x1.5 | 17 | 42 | 7 | alama nichelata |
|
Adauga |
