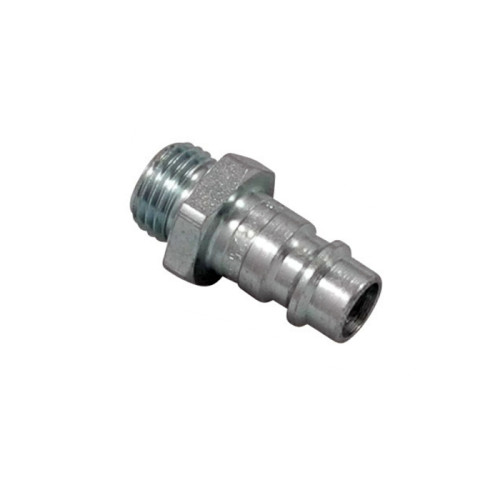

Cupla rapida tata, seria 25, filet exterior
Tip produs: 1625-25SFA
Profil standard industrial European
Seria 25, Diametru nominal DN 7,8
single shut-off
Presiune maxima de lucru: 35 bar
Temperatura: -20⁰C ... +100⁰C
Cupla rapida tata, seria 25, otel zincat, cu filet exterior, fara supapa de inchidere.

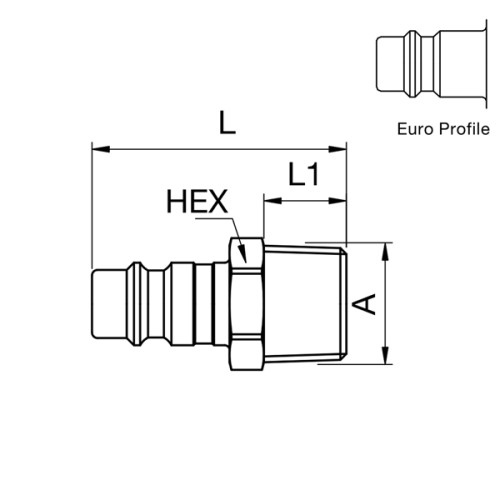

| Cod | Cod Legris | A | HEX mm | L mm | L1 mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|
| 25SFAK10SXZ | R1/8 | 13 | 33 | 9 |
|
Adauga | |
| 25SFAW10SXZ | 9087 25 10 | G1/8 | 13 | 31 | 6,5 |
|
Adauga |
| 25SFAK13SXZ | R1/4 | 14 | 37 | 12 |
|
Adauga | |
| 25SFAW13SXZ | 9087 25 13 | G1/4 | 17 | 33 | 8 |
|
Adauga |
| 25SFAK17SXZ | R3/8 | 17 | 37 | 12 |
|
Adauga | |
| 25SFAW17SXZ | 9087 25 17 | G3/8 | 19 | 34 | 9 |
|
Adauga |
| 25SFAK21SXZ | R1/2 | 22 | 43 | 17 |
|
Adauga | |
| 25SFAW21SXZ | 9087 25 21 | G1/2 | 24 | 38 | 10,5 |
|
Adauga |
