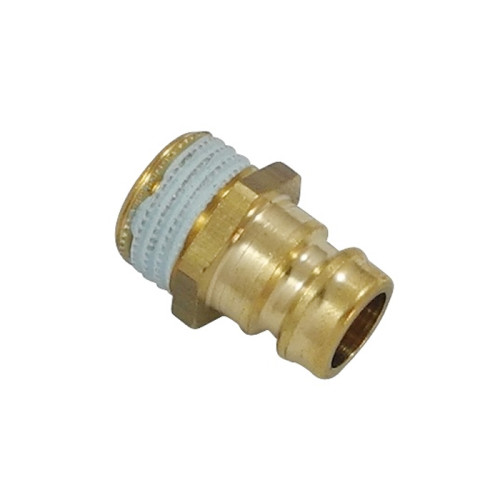

Cupla rapida tata, seria 10/11/12, cu filet exterior
Tip produs: 10/11/12SFA

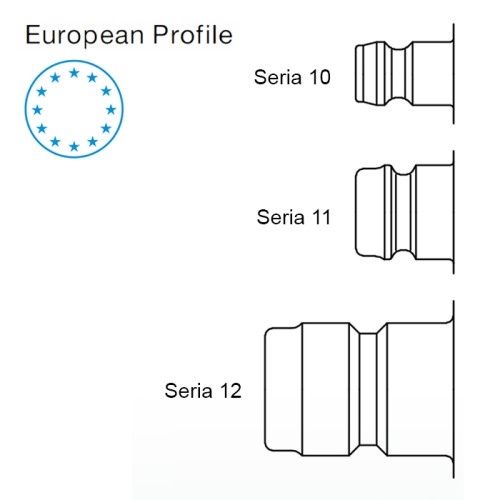

Profil European
Seria 10/11/12, Diametru nominal DN 6/9/13
straight-through
Presiune maxima de lucru: 15 bar
Temperatura: -15⁰C ... +200⁰C
Cupla rapida tata, seria 10/11/12, alama sau inox, cu filet exterior, fara supapa de inchidere - cu trecere libera a fluidului (full flow)

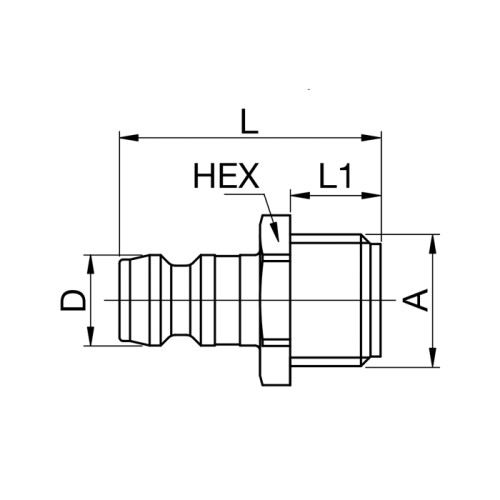

| Cod | DN mm | Seria | A | HEX mm | L mm | L1 mm | ØD mm | Varianta | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|---|---|
| 10SFAM08MXX | 6 | 10 | M8x0,75 | 11 | 24 | 7 | 9 | alama |
|
Adauga |
| 10SFAM10MXX | 6 | 10 | M10x1 | 11 | 24 | 7 | 9 | alama |
|
Adauga |
| 10SFAM10RXX | 6 | 10 | M10x1 | 11 | 24 | 7 | 9 | AISI 303 |
|
Adauga |
| 10SFAW10MXN | 6 | 10 | G1/8 | 11 | 24 | 7 | 9 | alama nichelata |
|
Adauga |
| 10SFAW10RXX | 6 | 10 | G1/8 | 11 | 24 | 7 | 9 | AISI 303 |
|
Adauga |
| 10SFAM12MXX | 6 | 10 | M12x1,5 | 14 | 27 | 10 | 9 | alama |
|
Adauga |
| 10SFAW13MXN | 6 | 10 | G1/4 | 15 | 26 | 9 | 9 | alama nichelata |
|
Adauga |
| 10SFAW13RXX | 6 | 10 | G1/4 | 15 | 26 | 9 | 9 | AISI 303 |
|
Adauga |
| 10SFAM14MXX | 6 | 10 | M14x1,5 | 15 | 26 | 9 | 9 | alama |
|
Adauga |
| 10SFAW17MXN | 6 | 10 | G3/8 | 17 | 30 | 10 | 9 | alama nichelata |
|
Adauga |
| 11SFAW10MXN | 9 | 11 | G1/8 | 14 | 25 | 8 | 13,5 | alama nichelata |
|
Adauga |
| 11SFAW13MXN | 9 | 11 | G1/4 | 15 | 26 | 9 | 13,5 | alama nichelata |
|
Adauga |
| 11SFAW13RXX | 9 | 11 | G1/4 | 15 | 26 | 9 | 13,5 | AISI 303 |
|
Adauga |
| 11SFAM14MXX | 9 | 11 | M14x1,5 | 15 | 26 | 9 | 13,5 | alama |
|
Adauga |
| 11SFAM16MXX | 9 | 11 | M16x1,5 | 17 | 26 | 9 | 13,5 | alama |
|
Adauga |
| 11SFAW17MXN | 9 | 11 | G3/8 | 17 | 26 | 9 | 13,5 | alama nichelata |
|
Adauga |
| 11SFAW17RXX | 9 | 11 | G3/8 | 17 | 26 | 9 | 13,5 | AISI 303 |
|
Adauga |
| 12SFAW21MXN | 13 | 12 | G1/2 | 22 | 47 | 12 | 19 | alama nichelata |
|
Adauga |
| 12SFAW26MXN | 13 | 12 | G3/4 | 27 | 51 | 16 | 19 | alama nichelata |
|
Adauga |
