Cupla rapida tata, seria C9000, profil ISO B, filet exterior BSPP
Tip produs: 9087U
Profil ISO B6 sau ISO B8
Seria C9000 safety, Diametru nominal DN 5,5 sau DN 8
self-venting system
Presiune maxima de lucru: 16 bar
Temperatura: -20⁰C ... +60⁰C
Conectare rapida si deconectare in siguranta.
Asigura debit optim pentru echipamentele si sculele pneumatice.
- Conformitate : ROHS
- Presiune maxima de lucru : 16 bar
- Temperatura minima de lucru : -20 ⁰C
- Temperatura maxima de lucru : 60 ⁰C
- Duza : otel nichelat
- Garnitura : polimer tehnic

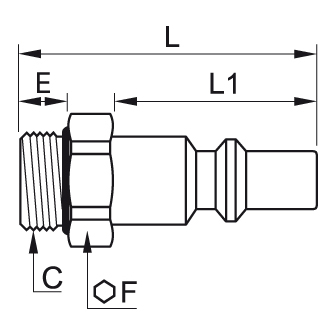

| Cod | Cod Transair | C | E mm | F mm | L mm | L1 mm | Debit l/min | DN mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|---|---|
| 9087U06 13 | CA87 U1 02 | G1/4 | 7 | 16 | 37 | 24 | 1250 | 5,5 |
|
Adauga |
| 9087U06 17 | CA87 U1 03 | G3/8 | 7 | 20 | 37 | 24 | 1250 | 5,5 |
|
Adauga |
| 9087U06 21 | CA87 U1 04 | G1/2 | 9 | 24 | 39 | 24 | 1250 | 5,5 |
|
Adauga |
| 9087U08 13 | CA87 U2 02 | G1/4 | 7 | 16 | 38 | 26 | 2400 | 8 |
|
Adauga |
| 9087U08 17 | CA87 U2 03 | G3/8 | 7 | 20 | 39 | 26 | 2400 | 8 |
|
Adauga |
| 9087U08 21 | CA87 U2 04 | G1/2 | 9 | 24 | 42 | 26 | 2400 | 8 |
|
Adauga |
