Cupla rapida mama, seria 608/612, cu filet exterior
Tip produs: 608/612SFA
Profil French
Seria 608/612, Diametru nominal DN 8/12
straight-through
Presiune maxima de lucru: 20 bar
Temperatura: -15⁰C ... +200⁰C
Cupla rapida pentru matrite, seria 608 sau 612, alama nichelata si garnituri FKM, cu filet exterior.
Debit apa: ~32...75 l/min

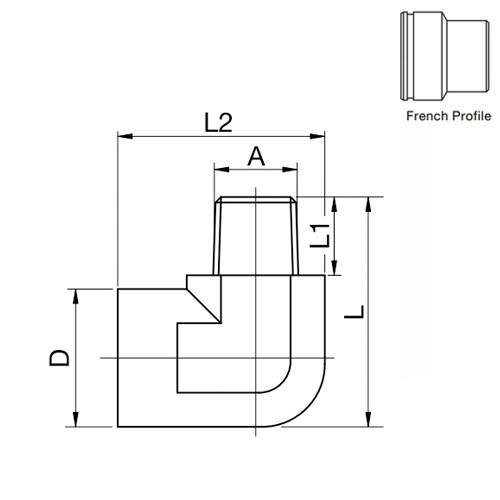

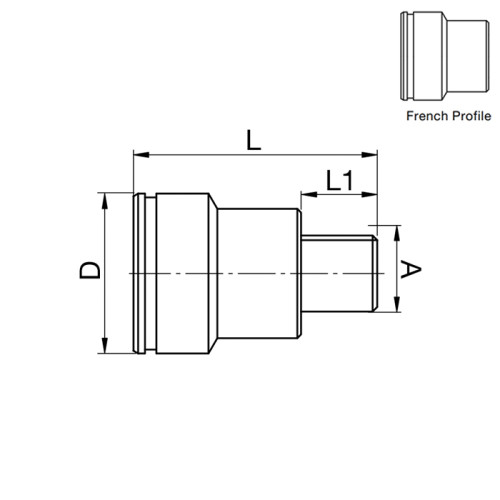

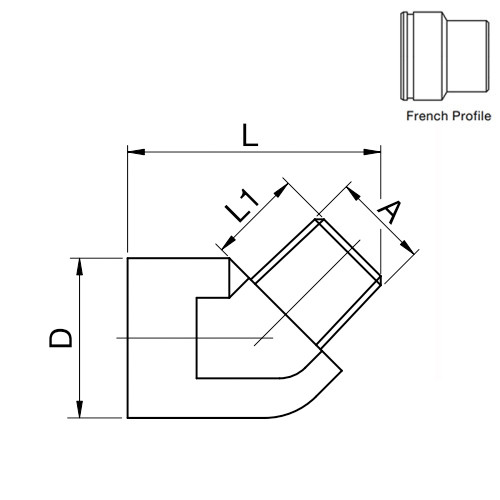

| Cod | DN mm | Seria | A | HEX mm | L mm | L1 mm | L2 mm | ØD mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|---|---|
| 608SFAM10MXN | 8 | 608 | M10x1 | 6 | 32 | 10 | 21 |
|
Adauga | |
| 608SFAW10MXN | 8 | 608 | G1/8 | 6 | 32 | 10 | 21 |
|
Adauga | |
| 608SFAW13MXN | 8 | 608 | G1/4 | 8 | 33 | 12 | 21 |
|
Adauga | |
| 608SFAW17MXN | 8 | 608 | G3/8 | 8 | 24 | 13 | 21 |
|
Adauga | |
| 608SFAR10MXN | 8 | 608 | R1/8 | 34 | 11 | 33 | 22 |
|
Adauga | |
| 608SFAR13MXN | 8 | 608 | R1/4 | 37 | 13 | 33 | 22 |
|
Adauga | |
| 608SFAR17MXN | 8 | 608 | R3/8 | 37 | 13 | 33 | 22 |
|
Adauga | |
| 608SFAH10MXN | 8 | 608 | R1/8 | 33 | 10,5 | 22 |
|
Adauga | ||
| 608SFAH13MXN | 8 | 608 | R1/4 | 35 | 13 | 22 |
|
Adauga | ||
| 612SFAW17MXN | 12 | 612 | G3/8 | 10 | 41 | 13 | 32 |
|
Adauga | |
| 612SFAW21MXN | 12 | 612 | G1/2 | 14 | 44 | 16 | 32 |
|
Adauga | |
| 612SFAW26MXN | 12 | 612 | G3/4 | 14 | 32 | 19 | 32 |
|
Adauga |
