Cupla rapida mama, seria 303 inox, filet interior
Tip produs: 303KBIW-inox
Profil ISO 6150 C
Seria 303 inox, Diametru nominal DN 3
double shut-off
Presiune maxima de lucru: 35 bar
Temperatura: -15⁰C ... +200⁰C
Cupla rapida mama, seria 303 inox, AISI 316L, cu filet interior si supapa pentru inchidere dubla.
Informatii de la producator
Quick Coupling with ISO 6150 C Profile, Series 303
Quick coupling system with nominal diameter 3 for pneumatic and fluid handling applications up to 35 bar. Coupling system with ISO 6150 C profile. Available made of stainless steel.
Parker's Series 303 is a mini industrial coupling with a plug profile according to ISO 6150 C. It is a popular profile in analytical and medical technology. Series 303 stands out for its above average flow rate performance for liquid and gaseous media.
Markets:
- Machinery Construction
- Life Science
- Process
- Food & Beverage
Features/Benefits:
- Coupling system according to ISO 6150 C
- Above average flow rate
Applications:
- Food and chemical processing
- Labatory equipment
- Cleaning equipment
- Steam and some gases
- Pneumatic break systems
Markets:
- Machinery Construction
- Life Science
- Process
- Food & Beverage
Features/Benefits:
- Coupling system according to ISO 6150 C
- Above average flow rate
Applications:
- Food and chemical processing
- Labatory equipment
- Cleaning equipment
- Steam and some gases
- Pneumatic break systems

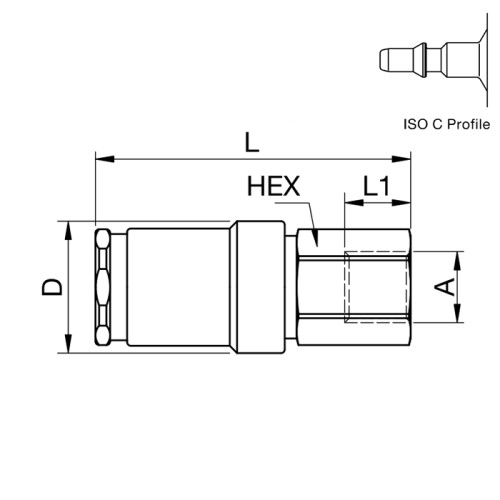

| Diameter | 3 nom |
| Valve Included | Yes |
| Version | Double Shut-Off |
| Length | 43 mm |
| Hex Size | 14 mm |
| Outside Diameter | 18 mm |
| Materials of Construction | AISI 316 L |
| Seal Material | FKM |
| Minimum Operating Temperature | -15 °C |
| Maximum Operating Temperature | 200 °C |
| Maximum Operating Pressure | 35 bar |
| Flow Rate | 160 L/min |
| Customer information about test reports and inspection certificates | view |
| Instructions for use - Standard-Couplings Single Shut-Off, Double Shut-Off, Straight-Through and Dry-break Couplings | view |
| Catalogue Page Parker Rectus Series 303 | view |
| Safety instructions - Quick Connect Couplings | view |
| Declaration Regarding Regulation (EC) No. 1907/2006 of the European Parliament and the Council Dated 18 December 2006 Concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) Published on 30 December 2006 in the Official Journal of the European Union 396/1. | view |
| Instructions for use for explosive areas (ATEX) | view |
| Datasheet Series 303 Double-Shut-Off Version made of Stainless Steel | view |
| Statement to EC Machinery Directive 2006/42/EC | view |
| Leakage rates for low-pressure couplings | view |
| Inventor of push-in fittings and market leader in quick couplings, Parker Legris Rectus has a reputed experience in fluid transfer for production automation, transportation, food processing, thermal management and medical applications. | view |
| Recommended values for the assembly of quick couplings to their connected lines | view |
| Overview of couplings for vacuum applications | view |
| Declaration of conformity - DIRECTIVE 2011/65/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 8 June 2011on the restriction of the use of certain hazardous substances in electrical and electronic equipment | view |
| 303KBIW10EVX | Part Solutions |
