Cupla rapida mama, seria 27, filet exterior
Tip produs: 27KBA
Profil standard European
Seria 27, Diametru nominal DN 10
double shut-off
Presiune maxima de lucru: 35 bar
Temperatura: -20⁰C ... +100⁰C
Cupla rapida mama, seria 27, alama nichelata, cu filet exterior si supapa pentru inchidere dubla.

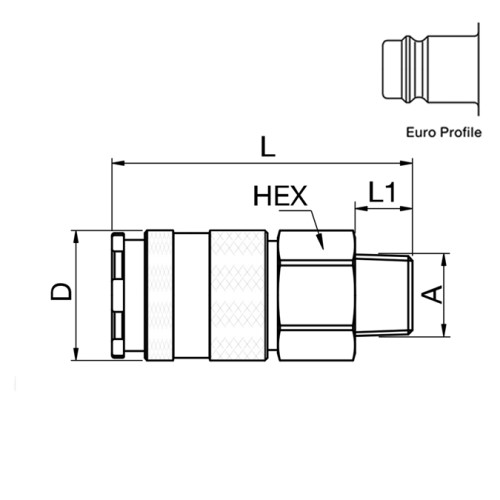

| Cod | A | HEX mm | L mm | L1 mm | ØD mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|
| 27KBAK13BPN | R1/4 | 24 | 63 | 12 | 27 |
|
Adauga |
| 27KBAK17BPN | R3/8 | 24 | 63 | 12 | 27 |
|
Adauga |
| 27KBAW17MPN | G3/8 | 24 | 63 | 12 | 27 |
|
Adauga |
| 27KBAK21BPN | R1/2 | 24 | 65 | 17 | 27 |
|
Adauga |
| 27KBAW21MPN | G1/2 | 24 | 65 | 17 | 27 |
|
Adauga |
| 27KBAK26BPN | R3/4 | 27 | 65 | 17 | 27 |
|
Adauga |
| 27KBAW26MPN | G3/4 | 27 | 65 | 17 | 27 |
|
Adauga |
