Cupla rapida mama, seria 25, filet interior
Tip produs: 25KBIW
Profil standard industrial European
Seria 25, Diametru nominal DN 7,8
double shut-off
Presiune maxima de lucru: 35 bar
Temperatura: -20⁰C ... +100⁰C
Cupla rapida mama, seria 25, alama nichelata, cu filet interior si supapa pentru inchidere dubla.
Cuple tata compatibile: seria 25, seria 26

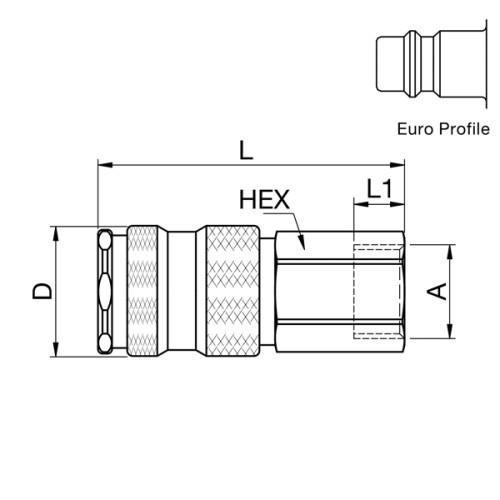

| Cod | Cod Legris | A | HEX mm | L mm | L1 mm | ØD mm | Varianta | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|---|
| 25KBIW13BPN | G1/4 | 19 | 56 | 10 | 23 | alama nicheata |
|
Adauga | |
| 25KBIW13MPN | 9214 25 13 | G1/4 | 19 | 56 | 10 | 23 | alama nicheata / otel |
|
Adauga |
| 25KBIW17BPN | G3/8 | 19 | 55 | 9 | 23 | alama nicheata |
|
Adauga | |
| 25KBIW17MPN | 9214 25 17 | G3/8 | 19 | 55 | 9 | 23 | alama nicheata / otel |
|
Adauga |
| 25KBIW21BPN | G1/2 | 24 | 58 | 12 | 23 | alama nicheata |
|
Adauga | |
| 25KBIW21MPN | 9214 25 21 | G1/2 | 24 | 58 | 12 | 23 | alama nicheata / otel |
|
Adauga |
