Cupla rapida mama, seria 25, cu stut
Tip produs: 25KBT
Profil standard industrial European
Seria 25, Diametru nominal DN 7,8
double shut-off
Presiune maxima de lucru: 35 bar
Temperatura: -20⁰C ... +100⁰C
Cupla rapida mama, seria 25, alama nichelata, cu stut pentru furtun si supapa pentru inchidere dubla.
Cuple tata compatibile: seria 25, seria 26

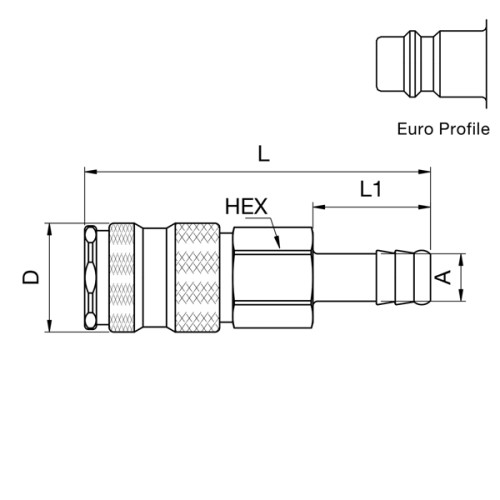

| Cod | Cod Legris | A | HEX mm | L mm | L1 mm | ØD mm | Varianta | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|---|
| 25KBTF06BPN | 6 | 19 | 74 | 25 | 23 | alama nichelata |
|
Adauga | |
| 25KBTF06MPN | 9223 25 06 | 6 | 19 | 74 | 25 | 23 | alama nichelata / otel |
|
Adauga |
| 25KBTF08BPN | 8 | 19 | 74 | 25 | 23 | alama nichelata |
|
Adauga | |
| 25KBTF08MPN | 9223 25 08 | 8 | 19 | 74 | 25 | 23 | alama nichelata / otel |
|
Adauga |
| 25KBTF09BPN | 9 | 19 | 74 | 25 | 23 | alama nichelata |
|
Adauga | |
| 25KBTF09MPN | 9 | 19 | 74 | 25 | 23 | alama nichelata / otel |
|
Adauga | |
| 25KBTF10BPN | 10 | 19 | 74 | 25 | 23 | alama nichelata |
|
Adauga | |
| 25KBTF10MPN | 9223 25 10 | 10 | 19 | 74 | 25 | 23 | alama nichelata / otel |
|
Adauga |
| 25KBTF13BPN | 13 | 19 | 74 | 25 | 23 | alama nichelata |
|
Adauga | |
| 25KBTF13MPN | 9223 25 13 | 13 | 19 | 74 | 25 | 23 | alama nichelata / otel |
|
Adauga |
| 25KBTP10BPN | 10 Push-Lok | 19 | 73 | 24 | 23 | alama nichelata |
|
Adauga | |
| 25KBTP13BPN | 13 Push-Lok | 19 | 76 | 28 | 23 | alama nichelata |
|
Adauga |
