Cupla rapida mama, seria 25, cu stut
Tip produs: 25KBTF-cod
Sistem de codificare
Profil standard industrial European
Seria 25, Diametru nominal DN 7,8
double shut-off
Presiune maxima de lucru: 35 bar
Temperatura: -20⁰C ... +100⁰C
Cupla rapida mama, seria 25 cu sistem de codificare, alama nichelata, cu cu stut pentru furtun si supapa pentru inchidere dubla.

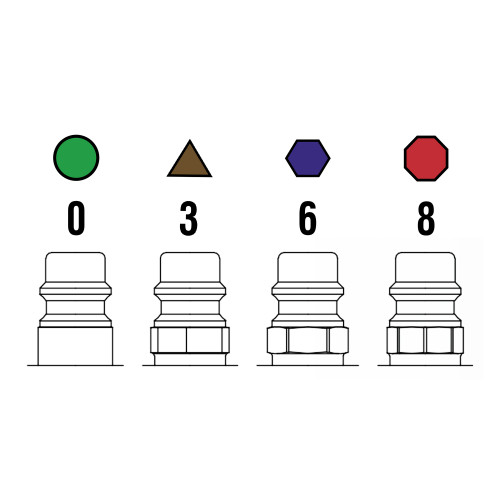

Sistemul de codificare consta in utilizarea de culori si profile geometrice diferite pentru prevenirea conectarii incorecte a circuitelor.
Cuplele sunt codificate in patru variante:
- profil geometric rotund - culoare verde
- profil geometric triunghiular - culoare maro
- profil geometric hexagonal - culoare albastru
- profil geometric octogonal - culoare rosu

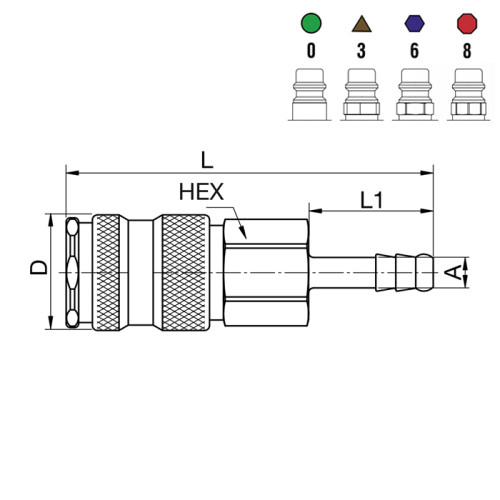

| Cod | Codificare | A | HEX mm | L mm | L1 mm | ØD mm | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|
| 25KBTF06BPN0 | verde-rotund | 6 | 19 | 74 | 25 | 23 |
|
Adauga |
| 25KBTF09BPN0 | verde-rotund | 9 | 19 | 74 | 25 | 23 |
|
Adauga |
| 25KBTF13BPN0 | verde-rotund | 13 | 19 | 74 | 25 | 23 |
|
Adauga |
| 25KBTF06BPN3 | maro-triunghiular | 6 | 19 | 74 | 25 | 23 |
|
Adauga |
| 25KBTF09BPN3 | maro-triunghiular | 9 | 19 | 74 | 25 | 23 |
|
Adauga |
| 25KBTF13BPN3 | maro-triunghiular | 13 | 19 | 74 | 25 | 23 |
|
Adauga |
| 25KBTF06BPN6 | albastru-hexagonal | 6 | 19 | 74 | 25 | 23 |
|
Adauga |
| 25KBTF09BPN6 | albastru-hexagonal | 9 | 19 | 74 | 25 | 23 |
|
Adauga |
| 25KBTF13BPN6 | albastru-hexagonal | 13 | 19 | 74 | 25 | 23 |
|
Adauga |
| 25KBTF09BPN8 | rosu-octogonal | 6 | 19 | 74 | 25 | 23 |
|
Adauga |
| 25KBTF06BPN8 | rosu-octogonal | 9 | 19 | 74 | 25 | 23 |
|
Adauga |
| 25KBTF13BPN8 | rosu-octogonal | 13 | 19 | 74 | 25 | 23 |
|
Adauga |
