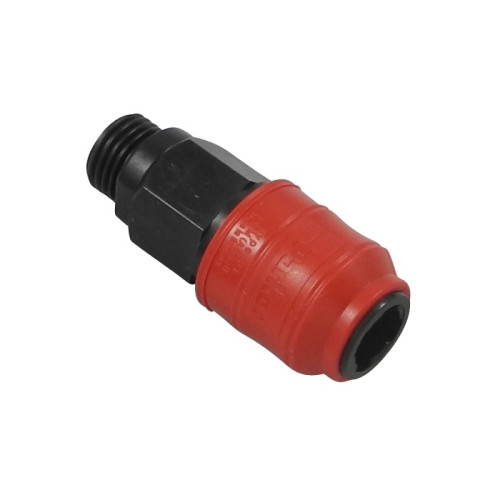

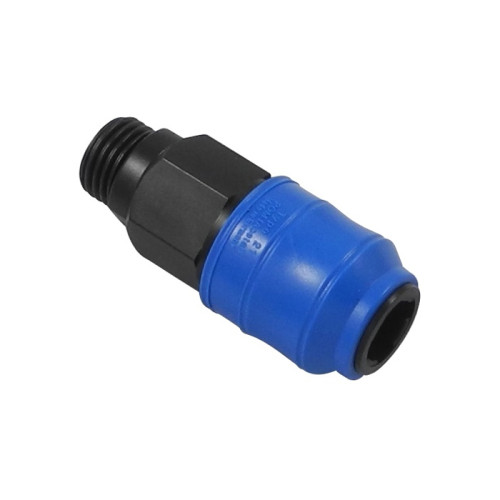

Cupla rapida mama, seria 21 termoplastic, manson cilindric, filet exterior
Profil standard European
Seria 21 termoplastic, Diametru nominal DN 5
double shut-off
Presiune maxima de lucru: 10 bar / 8 bar
Temperatura: -20⁰C ... +80⁰C / +120⁰C
Cupla rapida mama, seria 21 termoplastic, cu manson cilindric, filet exterior si supapa pentru inchidere dubla.
Variante materiale termoplastice:
Termoplastic POM
Presiune de lucru: maxim 10 bar (POM, la 20°C)
Material:
• Cupla mama: POM (culoare standard negru)
• Cupla tata: POM (culoare standard negru)
• Etansari: NBR
Temperatura: -20°C ... +80°C (POM)
Debit de aer:
• varianta inchidere simpla: 550 l/min.
• varianta inchidere dubla: 310 l/min.
(presiune 6 bar, cadere de presiune 0.5 bar)
Debit de apa:
• varianta inchidere simpla: 7 l/min.
• varianta inchidere dubla: 2,7 l/min.
(cadere de presiune 0.5 bar)

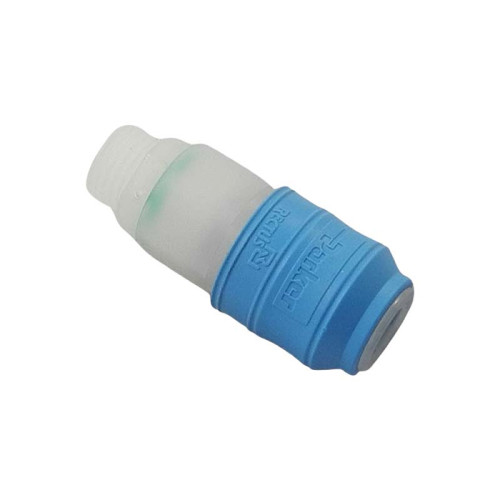

Termoplastic PVDF
Presiune de lucru: maxim 8 bar (PVDF, la 20°C)
Material:
• Cupla mama: PVDF (culoare standard alb)
• Cupla tata: PVDF (culoare standard alb)
• Etansari: FKM
Temperatura: -20°C ... +120°C (PVDF)
Debit de aer:
• varianta inchidere simpla: 550 l/min.
• varianta inchidere dubla: 310 l/min.
(presiune 6 bar, cadere de presiune 0.5 bar)
Debit de apa:
• varianta inchidere simpla: 7 l/min.
• varianta inchidere dubla: 2,7 l/min.
(cadere de presiune 0.5 bar)

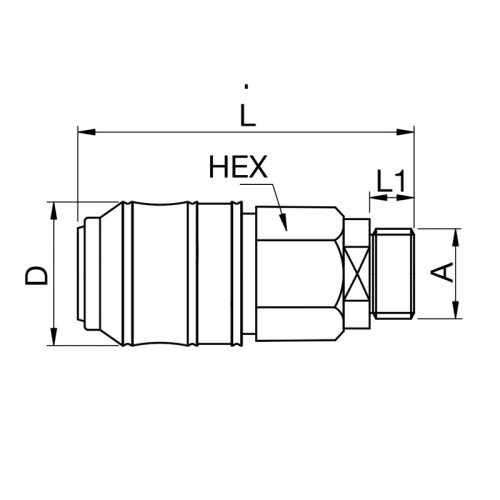

| Cod | A | HEX mm | L mm | L1 mm | ØD mm | Manson | Varianta | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|---|
| 21KBAW10DPXGB | G1/8 | 17 | 50 | 7 | 21 | albastru | POM |
|
Adauga |
| 21KBAW10FVXGB | G1/8 | 17 | 50 | 7 | 21 | albastru | CHEM |
|
Adauga |
| 21KBAW10DPXGR | G1/8 | 17 | 50 | 7 | 21 | rosu | POM |
|
Adauga |
| 21KBAW10FVXGR | G1/8 | 17 | 50 | 7 | 21 | rosu | CHEM |
|
Adauga |
| 21KBAW10DPXG | G1/8 | 17 | 50 | 7 | 21 | standard | POM |
|
Adauga |
| 21KBAW10FVXG | G1/8 | 17 | 50 | 7 | 21 | standard | CHEM |
|
Adauga |
| 21KBAW13DPXGB | G1/4 | 17 | 50 | 7 | 21 | albastru | POM |
|
Adauga |
| 21KBAW13FVXGB | G1/4 | 17 | 50 | 7 | 21 | albastru | CHEM |
|
Adauga |
| 21KBAW13DPXGR | G1/4 | 17 | 50 | 7 | 21 | rosu | POM |
|
Adauga |
| 21KBAW13FVXGR | G1/4 | 17 | 50 | 7 | 21 | rosu | CHEM |
|
Adauga |
| 21KBAW13DPXG | G1/4 | 17 | 50 | 7 | 21 | standard | POM |
|
Adauga |
| 21KBAW13FVXG | G1/4 | 17 | 50 | 7 | 21 | standard | CHEM |
|
Adauga |
