Cupla rapida mama, seria 21, filet exterior
Tip produs: 21KAA
Profil standard European
Seria 21, Diametru nominal DN 5
single shut-off
Presiune maxima de lucru: 35 bar
Temperatura: -20⁰C ... +100⁰C

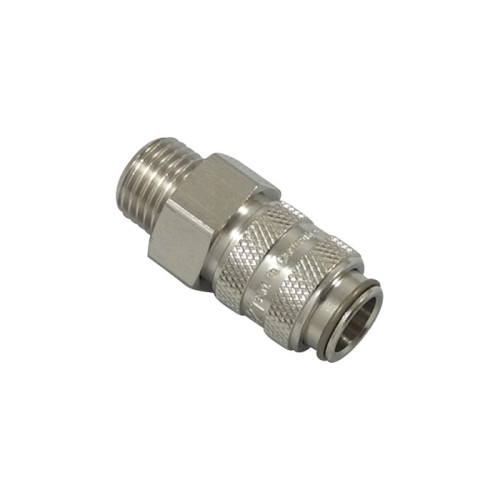

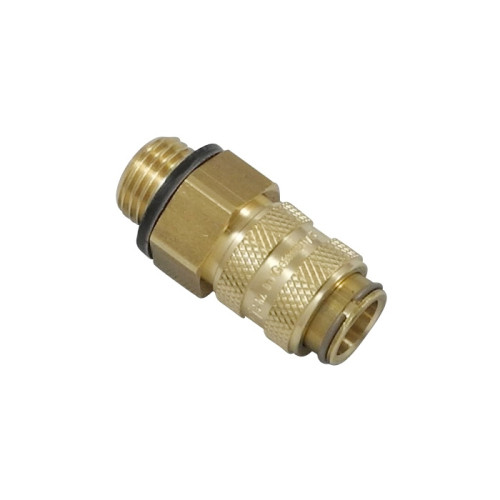

Cupla rapida mama, seria 21, alama sau alama nichelata, cu filet exterior si supapa pentru inchidere simpla.

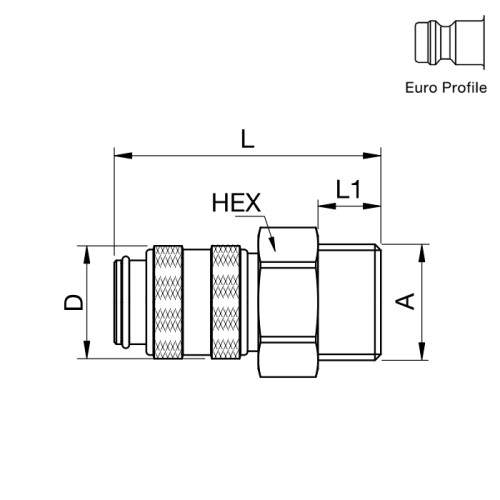

| Cod | A | HEX mm | L mm | L1 mm | ØD mm | Varianta | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|
| 21KAAW10MPX | G1/8 | 14 | 36 | 7 | 16 | alama |
|
Adauga |
| 21KAAW10MPN | G1/8 | 14 | 36 | 7 | 16 | alama nichelata |
|
Adauga |
| 21KAAW13MPX | G1/4 | 17 | 38 | 9 | 16 | alama |
|
Adauga |
| 21KAAW13MPN | G1/4 | 17 | 38 | 9 | 16 | alama nichelata |
|
Adauga |
| 21KAAW17MPX | G3/8 | 19 | 38 | 9 | 16 | alama |
|
Adauga |
| 21KAAW17MPN | G3/8 | 19 | 38 | 9 | 16 | alama nichelata |
|
Adauga |
| 21KAAD10MPX | M10x1 | 14 | 37 | 8 | 16 | alama |
|
Adauga |
| 21KAAD10MPN | M10x1 | 14 | 37 | 8 | 16 | alama nichelata |
|
Adauga |
| 21KAAD12MPX | M12x1.5 | 17 | 39 | 10 | 16 | alama |
|
Adauga |
| 21KAAD12MPN | M12x1.5 | 17 | 39 | 10 | 16 | alama nichelata |
|
Adauga |
| 21KAAD14MPX | M14x1.5 | 17 | 39 | 10 | 16 | alama |
|
Adauga |
| 21KAAD14MPN | M14x1.5 | 17 | 39 | 10 | 16 | alama nichelata |
|
Adauga |
