Cupla rapida mama, seria 21, cu stut
Tip produs: 21KATF
Profil standard European
Seria 21, Diametru nominal DN 5
single shut-off
Presiune maxima de lucru: 35 bar
Temperatura: -20⁰C ... +100⁰C

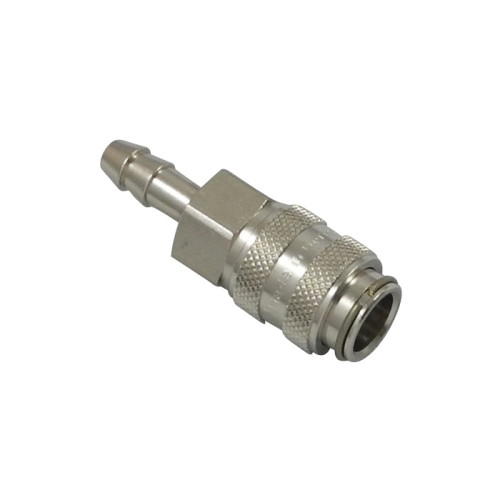

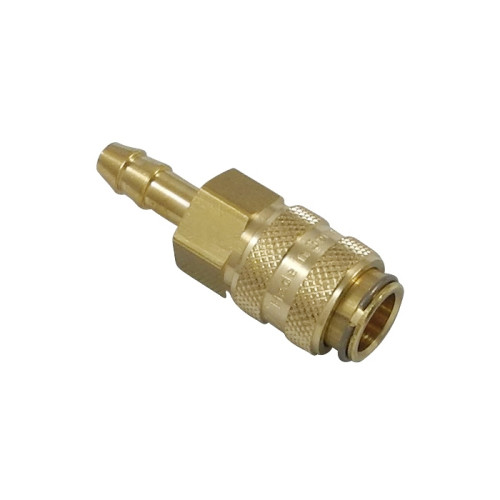

Cupla rapida mama, seria 21, alama sau alama nichelata, cu stut pentru furtun si supapa pentru inchidere simpla.

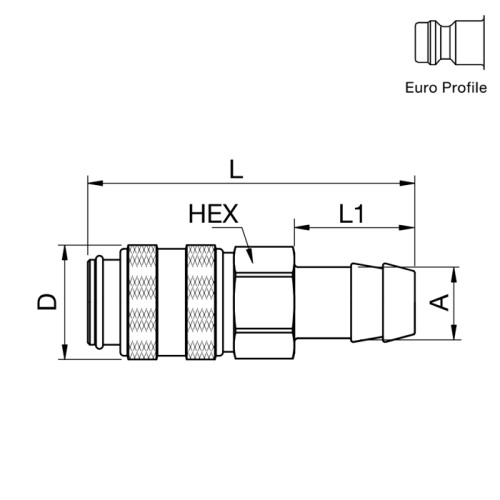

| Cod | A | HEX mm | L mm | L1 mm | ØD mm | Varianta | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|---|
| 21KATF04MPX | 4 | 14 | 46 | 17 | 16 | alama |
|
Adauga |
| 21KATF04MPN | 4 | 14 | 46 | 17 | 16 | alama nichelata |
|
Adauga |
| 21KATF05MPX | 5 | 14 | 46 | 17 | 16 | alama |
|
Adauga |
| 21KATF05MPN | 5 | 14 | 46 | 17 | 16 | alama nichelata |
|
Adauga |
| 21KATF06MPX | 6 | 14 | 46 | 17 | 16 | alama |
|
Adauga |
| 21KATF06MPN | 6 | 14 | 46 | 17 | 16 | alama nichelata |
|
Adauga |
| 21KATF08MPX | 8 | 14 | 46 | 17 | 16 | alama |
|
Adauga |
| 21KATF08MPN | 8 | 14 | 46 | 17 | 16 | alama nichelata |
|
Adauga |
| 21KATF09MPX | 9 | 14 | 46 | 17 | 16 | alama |
|
Adauga |
| 21KATF09MPN | 9 | 14 | 46 | 17 | 16 | alama nichelata |
|
Adauga |
| 21KATF10MPX | 10 | 41 | 46 | 17 | 16 | alama |
|
Adauga |
| 21KATF10MPN | 10 | 14 | 46 | 17 | 16 | alama nichelata |
|
Adauga |
