Cupla rapida mama, seria C9000, profil European, dubla in Y, filet interior BSPP

Cupla rapida mama, seria C9000, profil European, dubla in Y, filet interior BSPP

Tip produs: 9440E

Ansamblu Y cuple rapide seria C9000 cu deconectare in siguranta in 2 pasi (depresurizare, deconectare)

Profil standard European
Seria C9000 safety, Diametru nominal DN 7,2

self-venting system

Presiune maxima de lucru: 16 bar
Temperatura: -20⁰C ... +60⁰C

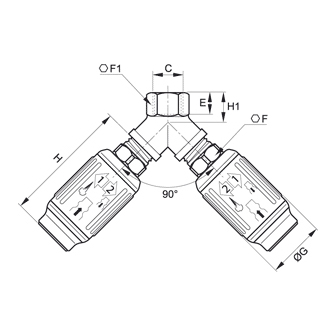

Ansamblul in Y de cuple mama, impreuna cu perechile tata face posibila conectarea rapida a 2 circuite de aer si deconectarea in siguranta in 2 pasi

1 = depresurizare, 2 = deconectare

Constructia interna asigura un debit optim si eficient pentru echipamente si scule pneumatice.

Cuple tata compatibile: seria C9000 profil European, seria 25, seria 26

Informatii de la producator

Selectati codul produsului:

C 9000 Polymer Quick-Acting Safety Couplers

This range of ergonomic polymer couplers has been designed for the safety of operators and machinery while giving very high energy efficiency performance.<br/>Available in three profile standards, it is perfectly suited for any type of installation.

PART NUMBER: 9440E07 21 Ball Material: Stainless Steel Body Material: Technical Polymer Connection 1 Thread Size (metric): G 1/2 Connection 1 Thread Style: Female, BSPP Connection 2 Tube O.D. (inch): n/a Connection 2 Tube O.D. (mm): n/a Diameter: 7.2 DN Gripping Ring: n/a O-Ring Material: NBR Profile Shape: European Profile with Vent

This range of ergonomic polymer couplers has been designed for the safety of operators and machinery while giving very high energy efficiency performance.

Available in three profile standards, it is perfectly suited for any type of installation.

Features/Benefits:

- Safety & Reliability

• Prevents risk of whiplash
• Quick-acting vent allowing disconnection to be carried out in total safety
• Rotating sleeve to avoid risk of accidental disconnection
• Low connection/disconnection force even under pressure
• Polymer sleeve protects equipment from scratching
• Protective spiral over the tube prevents kinking

- Performance

• Very high flow and low pressure drop
• 100% leak-tested in production
• Date coding to guarantee quality and traceability
• Robust impact-resistant material
• Optimum energy efficiency
• Long-term reliability

- Easy-to-Use

• Immediate identification by clear marking on each model showing:
profile of the compatible male probe
type part number
• Compatible with male probes conforming to:
ISO B profile
European profile
ARO profile

Markets:

• Packaging
• Miscellaneous Manufacturing
• Vehicle Assembly Facilities

Applications:

• Compressed Air Circuits Automatic Connection and Disconnection
• Workshops
• Air Operated Tools
• Ring Main Circuits
• Cleaning
• Blowing

Technologies:

• Quick acting coupler
• Quick coupling
• Quick connect coupling
• Quick connect coupler
• Y coupler
• Coupler
• Coupling
• C9000

Technical Characteristics:

• Compatible fluids: Compressed air

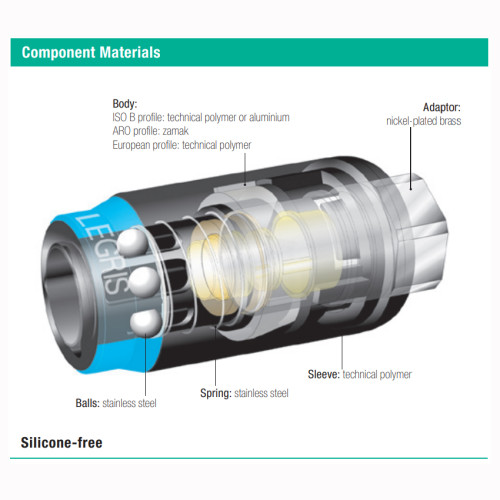

• Materials: Technical polymer, aluminium, nickel-plated brass, zamak, stainless steel
• Pressure: Vacuum to 16 bar
• Temperature: -20°C to +60°C

Regulations:

• DI: 97/23/EC (PED)
• DI: 2002/95/EC (RoHS), 2011/65/EC
• DI: 1907/2006 (REACH)
• ISO 4414 Pneumatic Fluid Power: General Rules Relating to Systems
• DIN EN 983 Safety Standard for Pneumatics

Product Types:

• Coupler, Male BSPP Thread
• Coupler, Male BSPT Thread
• Coupler, Female BSPP Thread
• Coupler, LF 3000® Push-In Connection, Body Spiral Protection Spring
• Coupler with Hosetail
• Coupler, Bulkhead Mountable, Female BSPP Thread
• Y Coupler, Female BSPP Thread
• Probe, Straight-Through, Male BSPP Thread
• Probe, Straight-Through, Female BSPP Thread
• Probe, Straight-Through, LF 3000® Push-In Connection, with Spiral Protection Spring
• Probe, Straight-Through, with Hosetail
• Coupler, Male BSPP Thread
• Coupler, Female BSPP Thread
• Coupler, LF 3000® Push-In Connection, with Spiral Protection Spring
• Coupler with Hosetail
• Coupler, Bulkhead Mountable, Female BSPP Thread
• Y Coupler, Female BSPP Thread
• Probe, Straight-Through, Male BSPP Thread
• Probe, Straight-Through, Female BSPP Thread
• Probe, Straight-Through, LF 3000® Push-In Connection, with Spiral Protection Spring
• Probe, Straight-Through, with Hosetail
• Coupler, Male BSPP Thread
• Coupler, Male BSPT Thread
• Coupler, Female BSPP Thread
• Coupler, LF 3000® Push-In Connection, with Spiral Protection Spring
• Coupler, Bulkhead Mountable, Female BSPP Thread
• Y Coupler, Female BSPP Thread
• Probe, Straight-Through, Male BSPP Thread
• Probe, Straight-Through, Female BSPP Thread
• Probe, Straight-Through, Male BSPT Thread
• Probe, Straight-Through, LF 3000® Push-In Connection, with Spiral Protection Spring
• Probe, Straight-Through, with Hosetail

Coating	na
Thread Sealant Material	na
Maximum Operating Pressure	16 barg
Minimum Operating Temperature	-20 °C
Maximum Operating Temperature	60 °C
Quantity per Box	1
Weight	0.335 kg
Application	Workshops, Cleaning, Blowing, Pneumatics, Air-Operated Tools, Ring Main Circuits, Packaging
Media	Compressed air
Specifications Met	DI: 97/23/EC (PED), DI: 2002/95/EC (RoHS), 2011/65/EC, DI: 1907/2006 (REACH), ISO 4414 Pneumatic Fluid Power: General Rules Relating to Systems, DIN EN 983 Safety Standard for pneumatics

C9000 Polymer Quick-Acting Safety Couplers Datasheet	view
Tubing Part Number Identification\r	view
C9000 Polymer Quick-Acting Safety Couplers 2 Datasheet	view
Inventor of push-in fittings and market leader in quick couplings, Parker Legris Rectus has a reputed experience in fluid transfer for production automation, transportation, food processing, thermal management and medical applications.	view
Certificat de conformité - RoHS LPCE : déclaration de conformité selon la directive VLE 2011/65/CE sur les substances dangereuses.	view

Catalog cuple rapide seria C9000 : Deschide
Instructiuni de operare : Deschide
