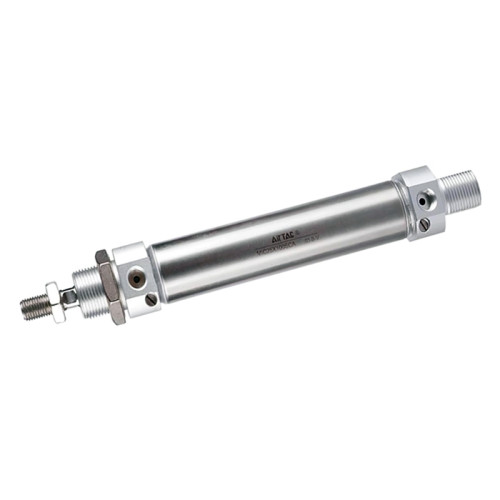

Cilindru pneumatic rotund ISO 6432, seria MIC Ø20, dubla actionare, amortizare reglabila
Tip produs: MIC20
- dubla actionare
- amortizare reglabila la capat de cursa
- diametru piston: Ø20 mm
- standard: ISO 6432
Cilindru pneumatic rotund ISO 6432, dubla actionare (sau dublu efect) cu amortizare reglabila la capat de cursa si magnet pentru senzori.
- dubla actionare
- amortizare reglabila la capat de cursa
- cu magnet pentru senzori
- diametru piston: Ø20 mm
- standard: ISO 6432

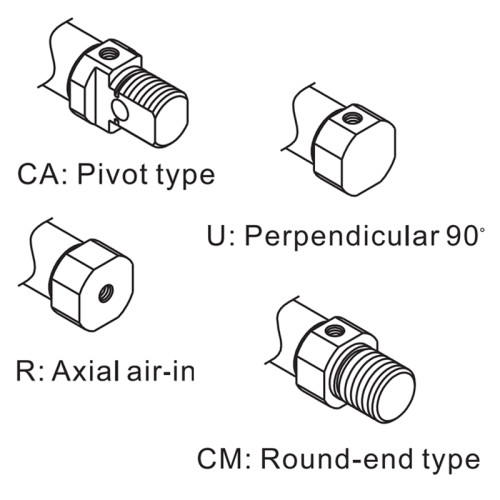

- variante constructive prindere spate tip: CA, U, R, CM
- gama standard de temperatura: -20⁰C ... +70⁰C
- presiune de lucru : 1,5 ... 8 bar
- aer comprimat filtrat: min 40µ
- Catalog cilindri pneumatici rotunzi AirTAC - seria MI : Deschide
| Cod | Diametru piston mm | Cursa mm | Racord aer | Diametru tija (ØD) mm | Tip | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|
| MIC20X12SCAG | 20 | 12 | G1/8 | 8 | CA |
|
Adauga |
| MIC20X35SCAG | 20 | 35 | G1/8 | 8 | CA |
|
Adauga |
| MIC20X30SCAG | 20 | 30 | G1/8 | 8 | CA |
|
Adauga |
| MIC20X40SCAG | 20 | 40 | G1/8 | 8 | CA |
|
Adauga |
| MIC20X50SCAG | 20 | 50 | G1/8 | 8 | CA |
|
Adauga |
| MIC20X60SCAG | 20 | 60 | G1/8 | 8 | CA |
|
Adauga |
| MIC20X70SCAG | 20 | 70 | G1/8 | 8 | CA |
|
Adauga |
| MIC20X75SCAG | 20 | 75 | G1/8 | 8 | CA |
|
Adauga |
| MIC20X80SCAG | 20 | 80 | G1/8 | 8 | CA |
|
Adauga |
| MIC20X100SCAG | 20 | 100 | G1/8 | 8 | CA |
|
Adauga |
| MIC20X150SCAG | 20 | 150 | G1/8 | 8 | CA |
|
Adauga |
| MIC20X160SCAG | 20 | 160 | G1/8 | 8 | CA |
|
Adauga |
| MIC20X175SCAG | 20 | 175 | G1/8 | 8 | CA |
|
Adauga |
| MIC20X200SCAG | 20 | 200 | G1/8 | 8 | CA |
|
Adauga |
| MIC20X250SCAG | 20 | 250 | G1/8 | 8 | CA |
|
Adauga |
| MIC20X300SCAG | 20 | 300 | G1/8 | 8 | CA |
|
Adauga |
| MIC20X320SCAG | 20 | 320 | G1/8 | 8 | CA |
|
Adauga |
| MIC20X400SCAG | 20 | 400 | G1/8 | 8 | CA |
|
Adauga |
| MIC20X500SCAG | 20 | 500 | G1/8 | 8 | CA |
|
Adauga |
| MIC20X560SCAG | 20 | 560 | G1/8 | 8 | CA |
|
Adauga |
