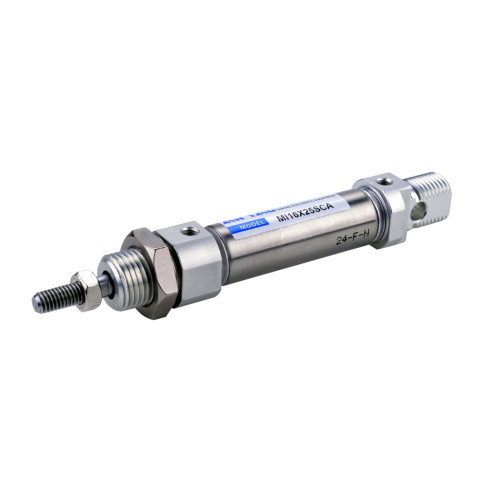

Cilindru pneumatic rotund ISO 6432, seria MI Ø25, dubla actionare, amortizare fixa
Tip produs: MI25
- dubla actionare
- amortizare fixa la capat de cursa
- diametru piston: Ø25 mm
- standard: ISO 6432
Cilindru pneumatic rotund ISO 6432, dubla actionare (sau dublu efect) cu amortizare fixa la capat de cursa si magnet pentru senzori.
- dubla actionare
- amortizare fixa la capat de cursa
- cu magnet pentru senzori
- diametru piston: Ø25 mm
- standard: ISO 6432

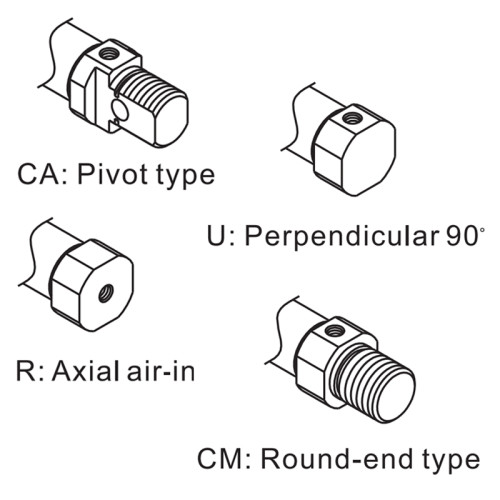

- variante constructive prindere spate tip: CA, U, R, CM
- gama standard de temperatura: -20⁰C ... +70⁰C
- presiune de lucru : 1,5 ... 8 bar
- aer comprimat filtrat: min 40µ
- Catalog cilindri pneumatici rotunzi AirTAC - seria MI : Deschide
| Cod | Diametru piston mm | Cursa mm | Racord aer | Diametru tija (ØD) mm | Tip | Stoc | Cerere oferta |
|---|---|---|---|---|---|---|---|
| MI25X5SCAG | 25 | 5 | G1/8 | 10 | CA |
|
Adauga |
| MI25X10SCAG | 25 | 10 | G1/8 | 10 | CA |
|
Adauga |
| MI25X15SCAG | 25 | 15 | G1/8 | 10 | CA |
|
Adauga |
| MI25X20SCAG | 25 | 20 | G1/8 | 10 | CA |
|
Adauga |
| MI25X25SCAG | 25 | 25 | G1/8 | 10 | CA |
|
Adauga |
| MI25X30SCAG | 25 | 30 | G1/8 | 10 | CA |
|
Adauga |
| MI25X35SCAG | 25 | 35 | G1/8 | 10 | CA |
|
Adauga |
| MI25X40SCAG | 25 | 40 | G1/8 | 10 | CA |
|
Adauga |
| MI25X50SCAG | 25 | 50 | G1/8 | 10 | CA |
|
Adauga |
| MI25X65SCAG | 25 | 65 | G1/8 | 10 | CA |
|
Adauga |
| MI25X70SCAG | 25 | 70 | G1/8 | 10 | CA |
|
Adauga |
| MI25X75SCAG | 25 | 75 | G1/8 | 10 | CA |
|
Adauga |
| MI25X80SCAG | 25 | 80 | G1/8 | 10 | CA |
|
Adauga |
| MI25X90SCAG | 25 | 90 | G1/8 | 10 | CA |
|
Adauga |
| MI25X100SCAG | 25 | 100 | G1/8 | 10 | CA |
|
Adauga |
| MI25X110SCAG | 25 | 110 | G1/8 | 10 | CA |
|
Adauga |
| MI25X120SCAG | 25 | 120 | G1/8 | 10 | CA |
|
Adauga |
| MI25X125SCAG | 25 | 125 | G1/8 | 10 | CA |
|
Adauga |
| MI25X180SCAG | 25 | 180 | G1/8 | 10 | CA |
|
Adauga |
| MI25X200SCAG | 25 | 200 | G1/8 | 10 | CA |
|
Adauga |
| MI25X210SCAG | 25 | 210 | G1/8 | 10 | CA |
|
Adauga |
| MI25X250SCAG | 25 | 250 | G1/8 | 10 | CA |
|
Adauga |
| MI25X290SCAG | 25 | 290 | G1/8 | 10 | CA |
|
Adauga |
| MI25X300SCAG | 25 | 300 | G1/8 | 10 | CA |
|
Adauga |
| MI25X320SCAG | 25 | 320 | G1/8 | 10 | CA |
|
Adauga |
| MI25X380SCAG | 25 | 380 | G1/8 | 10 | CA |
|
Adauga |
| MI25X450SCAG | 25 | 450 | G1/8 | 10 | CA |
|
Adauga |
| MI25X455SCAG | 25 | 455 | G1/8 | 10 | CA |
|
Adauga |
| MI25X500SCAG | 25 | 500 | G1/8 | 10 | CA |
|
Adauga |
| MI25X600SCAG | 25 | 600 | G1/8 | 10 | CA |
|
Adauga |
